TE Connectivity RT1 and RT2 Series PCB Power Relays
RT Series 1 and Series 2 through hole mounting PCB power relays with a variety of contact configurations and coil voltages.
RT1 PCB have 3.5mm pinning and are flux proof
RT2 PCB have 5mm pinning and are flux proof
RT3 PCB have 5mm pinning and are flux proor
RTB PCB have 3.5mm pinning and are wash tight
RTD PCB have 5mm pinning and are wash tight
RT4 PCB have 5mm pinning and are flux proof
RTE PCB have 5mm pinning and are wash tight Creepage and Clearance 10//10 mm
Applications: interface, automation, domestic applications, security lighting, heating systems
RT1 PCB have 3.5mm pinning and are flux proof
RT2 PCB have 5mm pinning and are flux proof
RT3 PCB have 5mm pinning and are flux proor
RTB PCB have 3.5mm pinning and are wash tight
RTD PCB have 5mm pinning and are wash tight
RT4 PCB have 5mm pinning and are flux proof
RTE PCB have 5mm pinning and are wash tight Creepage and Clearance 10//10 mm
Applications: interface, automation, domestic applications, security lighting, heating systems

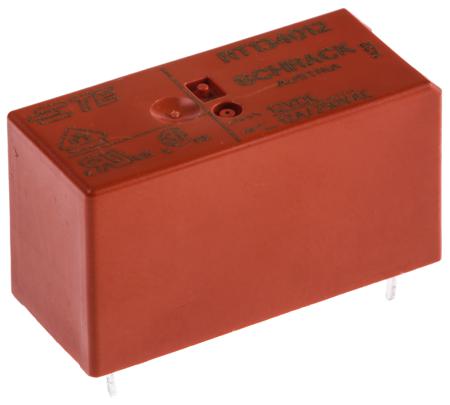

PCB Mount Power Relay, 12V dc Coil, 12A Switching Current, SPST
Manufacturer:
TE Connectivity
Manufacturer Part No:
RT134012
Enrgtech Part No:
ET16842787
Warranty:
Manufacturer
£ 1.98
Checking for live stock
Coil Voltage:
12V dc
Contact Configuration:
SPST
Mounting Type:
PCB Mount
Switching Current:
12A
Number of Poles:
1
Latching:
No
Terminal Type:
Through Hole
Length:
29mm
Coil Resistance:
360Ω
Depth:
12.7mm
Contact Material:
Silver Nickel Alloy
Maximum Operating Temperature:
+85°C
