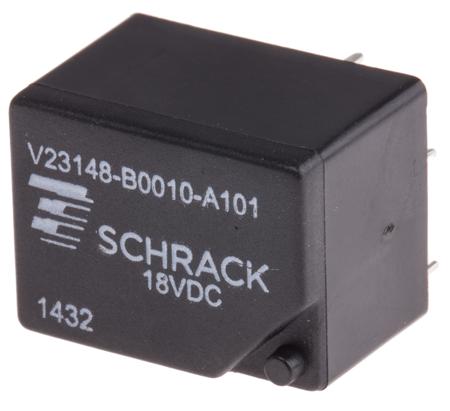

TE Connectivity U/UB Series PCB Power Relay
U / UB series single pole PCB power relays with silver nickel 90/10 contacts. Series U PCB power relays (V23148-A) are monostable with a standard or sensitive coil (for details see datasheet on RS website). Series U/B PCB power relays (V23148-B) are bistable with a standard coils.
Fully sealed design
Operating Temperature Range -25 to +70°C
Switching Voltage 250 Vac
Creepage And Clearance 3.5 mm
Isolation Coil to Contact: 4000Vac
H 18.9, W 21.2, D 16.2
Operating Temperature Range -25 to +70°C
Switching Voltage 250 Vac
Creepage And Clearance 3.5 mm
Isolation Coil to Contact: 4000Vac
H 18.9, W 21.2, D 16.2
PCB Mount Power Relay, 18V dc Coil, 7A Switching Current, SPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
1-1393204-4
Enrgtech Part No:
ET16961606
Warranty:
Manufacturer
£ 18.73
Checking for live stock
Coil Voltage:
18V dc
Contact Configuration:
SPDT
Mounting Type:
PCB Mount
Switching Current:
7A
Number of Poles:
1
Latching:
No
Terminal Type:
PCB Pin
Maximum Switching Voltage AC:
400V
Length:
21.2mm
Minimum Operating Temperature:
-25°C
Height:
14.9mm
Series:
U/UB
