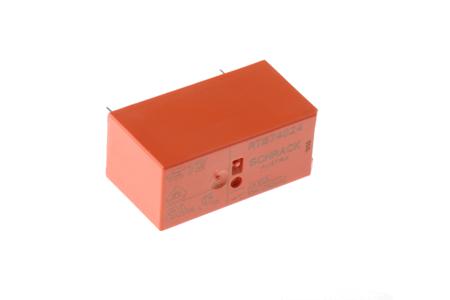

SPDT PCB Mount Non-Latching Relay, 24V dc Coil 10 A

Coil Voltage:

24V dc

Contact Configuration:

SPDT

Mounting Type:

PCB Mount

Switching Current:

10 A

Terminal Type:

Through Hole

Coil Resistance:

2.304 kΩ

Application:

Power

Length:

29mm

Depth:

12.7mm

Height:

15.7mm

Dimensions:

29 x 12.7 x 15.7mm

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+85°C

Contact Material:

Silver Nickel Alloy

Maximum Switching Power AC:

2.5 kVA

Operating Temperature Range:

-40 → +85°C
