The TE Connectivity Power Relay is designed to control compressor loads to 3.5 tons.
UL approved for 600VAC switching
RoHS compliant
RoHS compliant

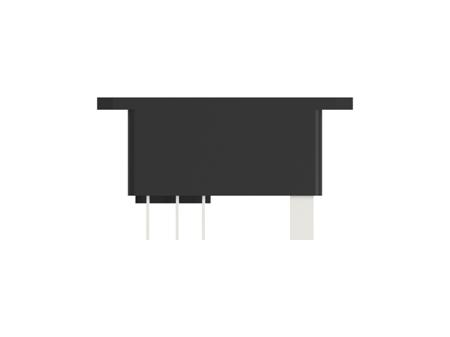

Panel Mount Relay, 24V dc Coil, 30A Switching Current, DPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
3-1423008-6
Enrgtech Part No:
ET28280366
Warranty:
Manufacturer
£ 27.85
Checking for live stock
Coil Voltage:
24V dc
Contact Configuration:
DPDT
Mounting Type:
Panel Mount
Switching Current:
30A
Number of Poles:
2
Maximum Switching Voltage AC:
600V
Length:
52.32?mm
Coil Resistance:
350 Ω
Coil Power:
1.7W
Minimum Operating Temperature:
-55°C
Maximum Operating Temperature:
+85°C
Contact Material:
AgSnOInO
