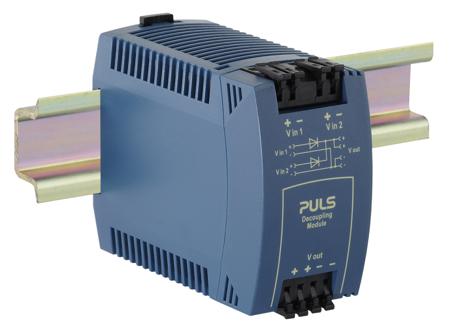

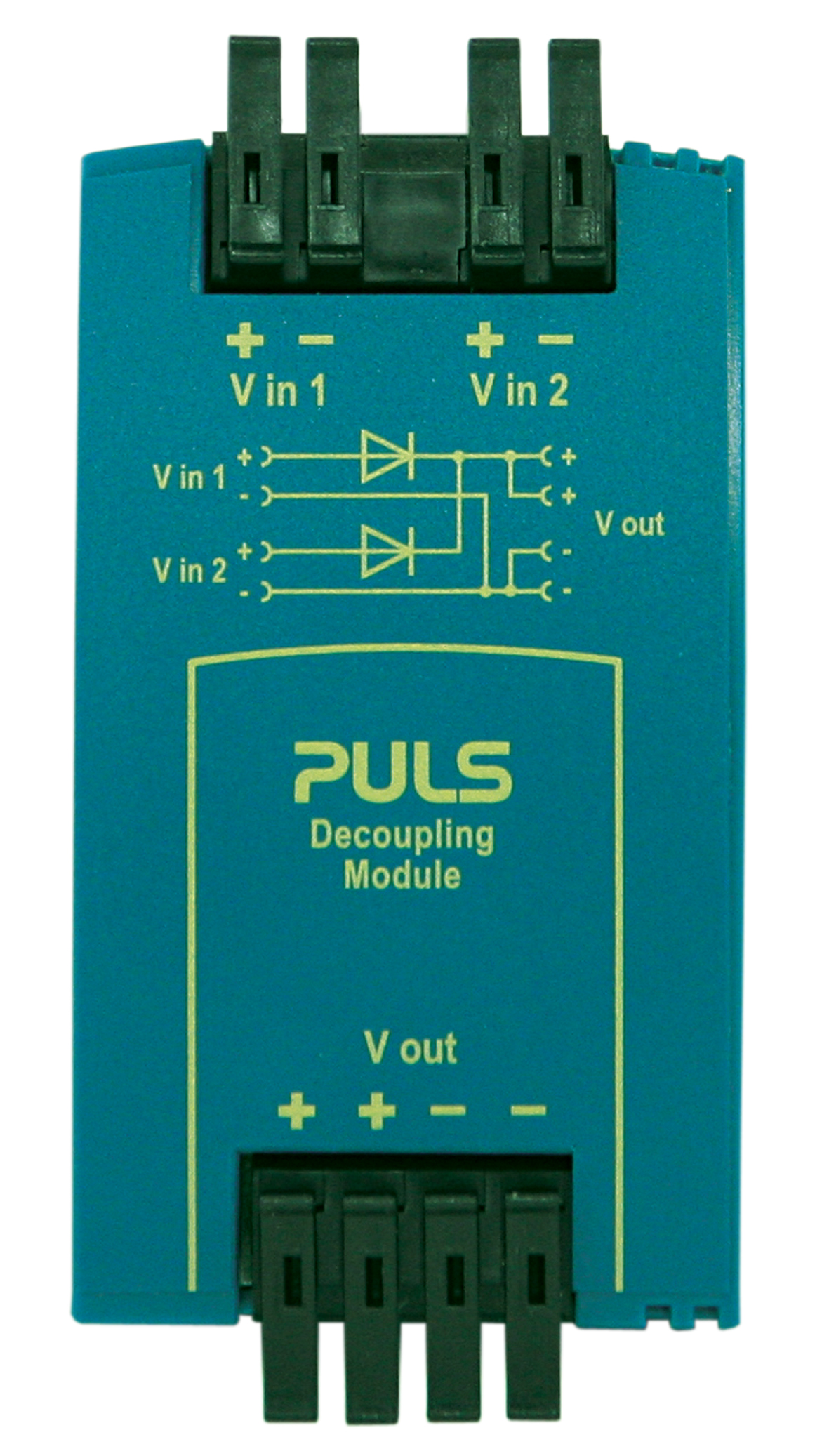

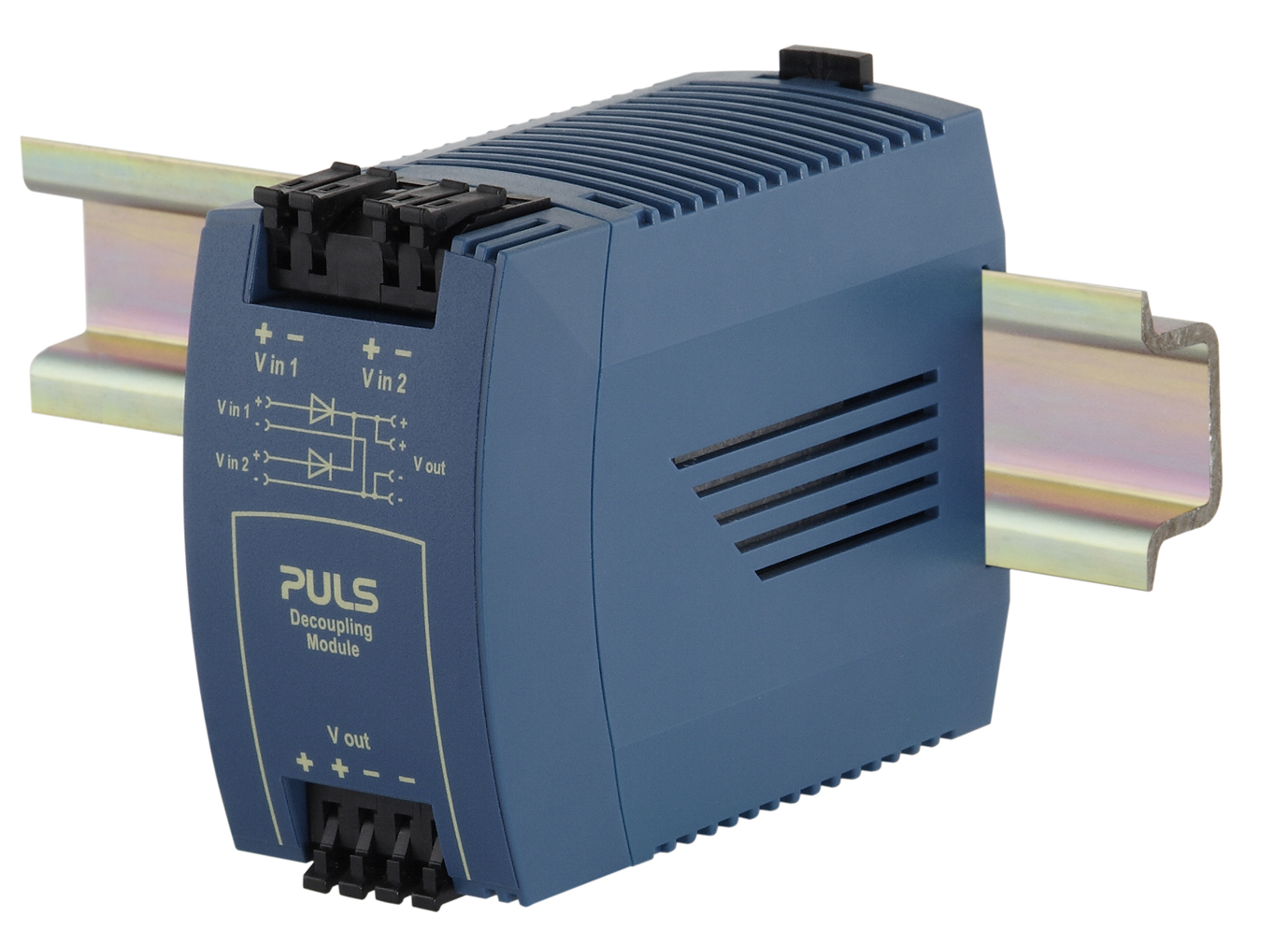

The PULS Redundancy module designed for 1+1 and N+1 redundant systems, featuring two input channels for connection to power supplies with up to 5A output current and one output capable of carrying nominal currents up to 10A.
Compact design
Distribution terminal for negative pole included
Dual input w/ single output
Compact size is 45mm wide
Spring clamp terminal
Distribution terminal for negative pole included
Dual input w/ single output
Compact size is 45mm wide
Spring clamp terminal
Power Supply Accessory, for use with MLY-Series, ML Series Series
£ 35.38
Checking for live stock
Accessory Type:
Power Supply Module
For Use With:
MLY-Series
Series:
ML Series
Input Voltage:
12 → 48V dc
Output Voltage:
12 → 48V dc
Filter Type:
EMC
Output Current:
80A
Terminal Type:
Spring Clamp
Protection Features:
Reverse Polarity Protection
Standards Met:
UL 60950-1
Rated Input Voltage:
12 → 28V
Supply Voltage:
12 → 28V
