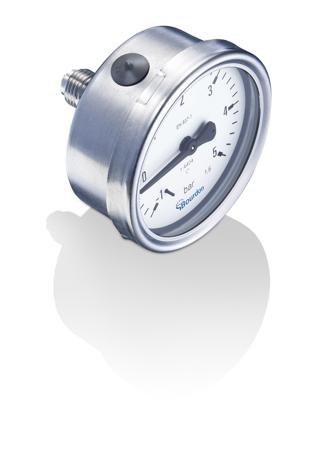

The Bourdon MEX3 is stainless steel pressure gauge has nominal size of Ø 63 with G1/4 connection and protected with IP65 rating.
Class 1.6 according to EN 837-1
Wetted parts Stainless steel
Case with crimped bezel ring
Lloyds Register Approval
Option Liquid-filled for applications with pulsations or vibrations
Option Case material 1.4404 (316L) for aggressive atmosphere Technical
Wetted parts Stainless steel
Case with crimped bezel ring
Lloyds Register Approval
Option Liquid-filled for applications with pulsations or vibrations
Option Case material 1.4404 (316L) for aggressive atmosphere Technical
G 1/4 Analogue Pressure Gauge 1.5bar Back Entry 63mm Outside Diameter
Manufacturer:
Bourdon
Manufacturer Part No:
MEX3-F20.B74
Enrgtech Part No:
ET24164626
Warranty:
Manufacturer
£ 95.90
Checking for live stock
Maximum Pressure Measurement:
1.5bar
Mounting Type:
Back Entry
Minimum Pressure Measurement:
-1bar
Display Type:
Analogue
Connection Size:
G 1/4
Gauge Outside Diameter:
63mm
