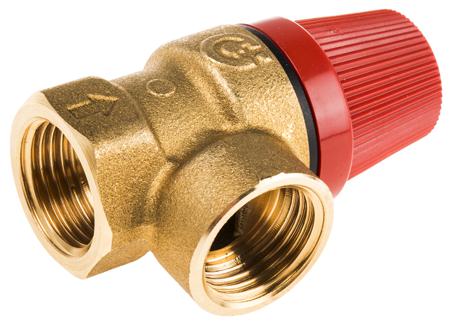

Altecnic Series 311Safety Relief Valve
The Altecnic series 311 safety relief valves are used in domestic hot water systems to protect the hot water cylinder and in heating systems to protect boiler and other components. The valve is selected for the required set pressure. As the pressure rises, when the discharge pressure is reached the valve opens and discharges to atmosphere, preventing the pressure within the system reaching levels which would be dangerous for the boiler, hot water storage cylinder and any personnel in the adjacent vicinity
Temperature range: 5 to 110°C
PED category: IV
WRAS approved product
Body Brass: BS EN 12165 CW617N
Cover Brass: BS EN 12165 CW617N
Stem Brass: BS EN 12164 CW614N
Diaphragm: EPDM
Spring: Stainless steel
Control Knob: ABS Polymer
PED category: IV
WRAS approved product
Body Brass: BS EN 12165 CW617N
Cover Brass: BS EN 12165 CW617N
Stem Brass: BS EN 12164 CW614N
Diaphragm: EPDM
Spring: Stainless steel
Control Knob: ABS Polymer
6bar Pressure Relief Valve With Female G 1/2 in G Female Connection and a G 1/2 Exhaust Port
Manufacturer:
Altecnic
Manufacturer Part No:
CA-RS/311460
Enrgtech Part No:
ET14011977
Warranty:
Manufacturer
£ 28.36
Checking for live stock
Connection:
1/2 in G Female
Maximum Set Pressure:
6bar
Maximum Temperature:
+110°C
For Use With:
Hot Water
Exhaust Port Size:
G 1/2
Body Material:
Brass
Connection Gender:
Female
Thread Size:
1/2in
Thread Standard or Connection Type:
G
