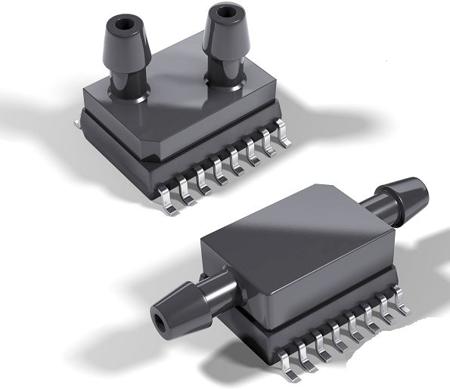

The TE Connectivity SMI ultra low pressure digital sensor is offering state-of-the-art MEMS pressure transducer technology and CMOS mixed signal processing technology to produce a digital, fully conditioned, multi-order pressure and temperature compensated sensor in JEDEC standard SOIC-16 package with a dual vertical porting option. This pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a custom correction algorithm. 0 to +300 Pa pressure range
3% FS (before Auto zero) error band
16-bit I2C digital interface
Pressure calibrated and temperature compensated output
Compensated temperature range from -20 to 85°C
