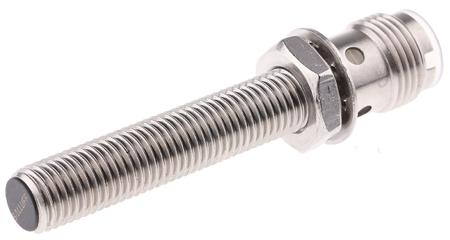

Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NO, 10 → 30 V dc

Thread Size:

M8

Sensor Technology:

Inductive

Detection Range:

2 mm

Body Style:

Threaded Barrel

Digital Switching Output Type:

PNP

Output Function:

NO

Connection Type:

M12

Supply Voltage:

10 → 30 V dc

IP Rating:

IP68

Length:

58mm

Mounting Type:

Flush

Housing Material:

Stainless Steel

Maximum DC Voltage:

30V

Minimum Operating Temperature:

-25°C

Short Circuit Overload Protection:

Yes

Reverse Polarity Protection:

Yes

Shielding:

Shielded

Switching Current:

200 mA

Switching Frequency:

1.5 kHz

Maximum Operating Temperature:

+80°C

Maximum Switching Frequency:

1.5kHz
