Bourns SM-LP-5001 Series Surface Mount Line Matching Transformers
SM-LP-5001 line matching transformers from Bourns are a subminiature solution, with a seated height of only 7.5 mm. These line matching transformers are vacuum encapsulated and have low distortion of only 0.015%.
600 Ω nominal impedance
80 dB minimum balance
-76 dB maximum distortion at 600 Hz
2000 Vrms dielectric strength for 1 minute Product Application Information Suitable applications for these line matching transformers include instrumentation, telecommunications, laptops and modems (V32).
80 dB minimum balance
-76 dB maximum distortion at 600 Hz
2000 Vrms dielectric strength for 1 minute Product Application Information Suitable applications for these line matching transformers include instrumentation, telecommunications, laptops and modems (V32).

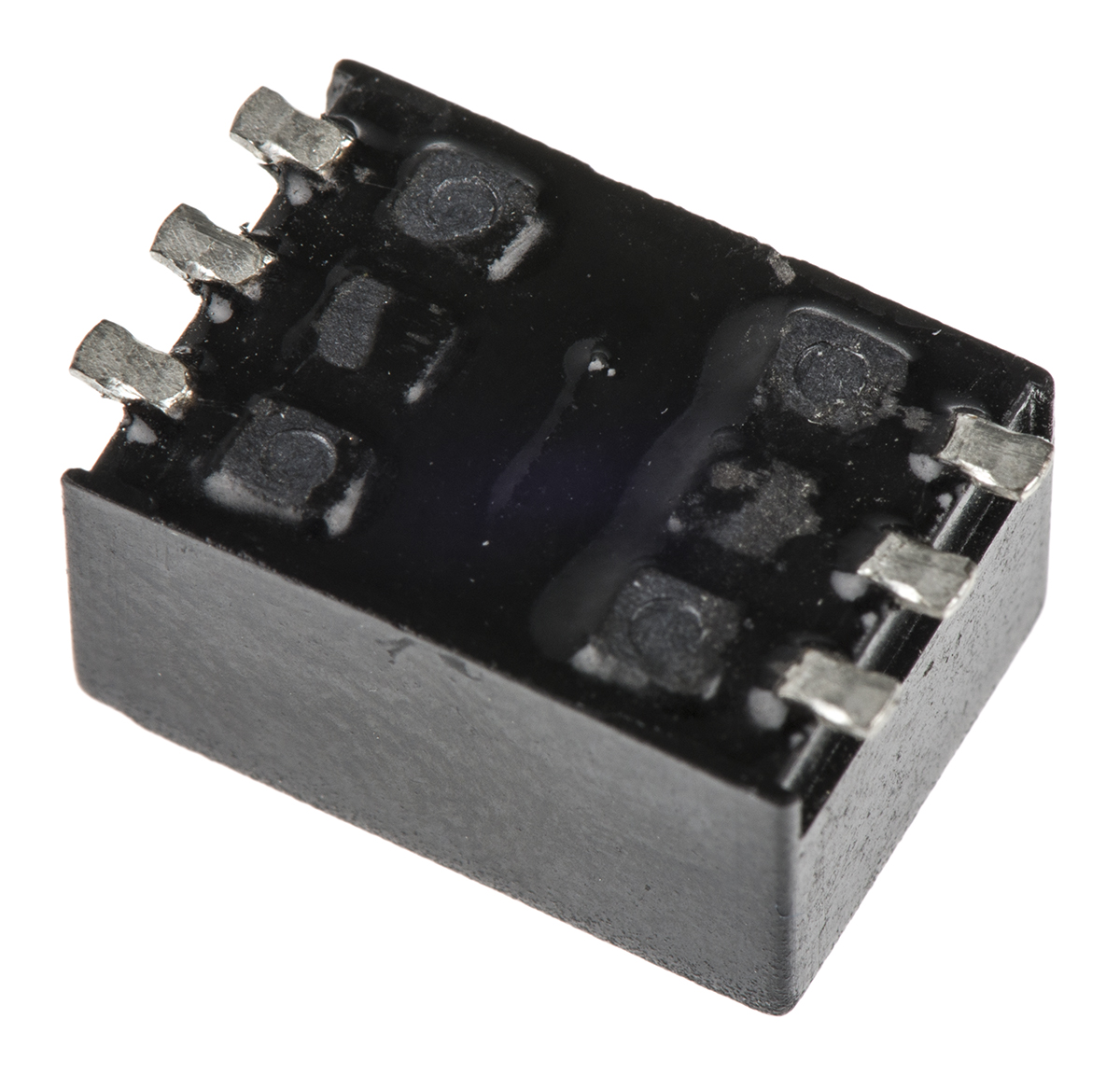

Surface Mount Pulse Transformer 1:1 Turns Ratio, 3.8H Prim. Inductance, 115Ω Prim. Resistance
Manufacturer:
Bourns
Manufacturer Part No:
SM-LP-5001
Enrgtech Part No:
ET13859210
Warranty:
Manufacturer
£ 5.79
Checking for live stock
Primary Inductance:
3.8H
Primary DC Resistance:
115Ω
Secondary DC Resistance:
115Ω
Insertion Loss:
2dB
Turns Ratio:
1:1
Mounting Type:
Surface Mount
Leakage Inductance:
6mH
Dimensions:
9.6 x 7.36 x 14mm
Depth:
14mm
Length:
9.6mm
Width:
7.36mm
Maximum Operating Frequency:
4kHz
