RS-232 Communications Isolation
Isolation converter transformer, low profile, with maximum isolation voltage of 1500Vrms
Specifically designed to provide isolated RS-232 interface, see Maxim integrated circuit MAX251 (stock no. 540-2142)
Printed circuit board standard pinout (2·54mm)
Specifically designed to provide isolated RS-232 interface, see Maxim integrated circuit MAX251 (stock no. 540-2142)
Printed circuit board standard pinout (2·54mm)

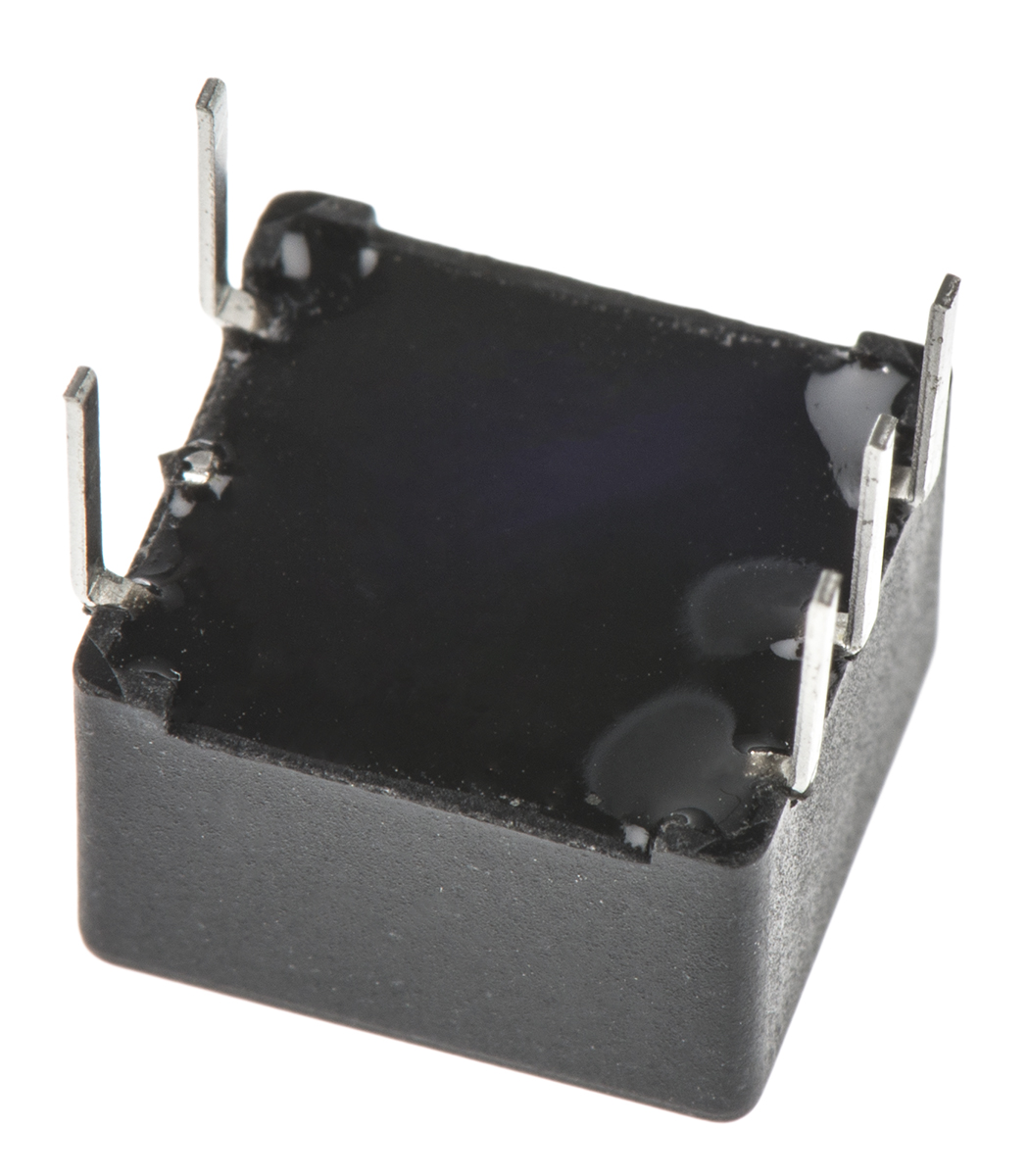

Through Hole Pulse Transformer 0.042361111111 Turns Ratio, 2mH Prim. Inductance, 1Ω Prim.
Manufacturer:
Murata Power Solutions
Manufacturer Part No:
78250C
Enrgtech Part No:
ET13953798
Warranty:
Manufacturer
£ 2.07
Checking for live stock
Primary Inductance:
2mH
Primary DC Resistance:
1Ω
Secondary DC Resistance:
1Ω
Turns Ratio:
0.042361111111
Mounting Type:
Through Hole
Leakage Inductance:
3µH
Length:
9mm
Width:
10.19mm
Construction:
Enclosed
Termination Type:
Pin
Maximum Temperature:
85°C
Minimum Temperature:
-40°C
