Pulse Transformer 786 Series
General purpose pulse transformers used in coupling, thyristor/triac firing and small sized switch mode power supply applications
The standard turns ratios may be modified by connecting any two windings in series
Can also be used as a common mode choke in filtering applications
The standard turns ratios may be modified by connecting any two windings in series
Can also be used as a common mode choke in filtering applications

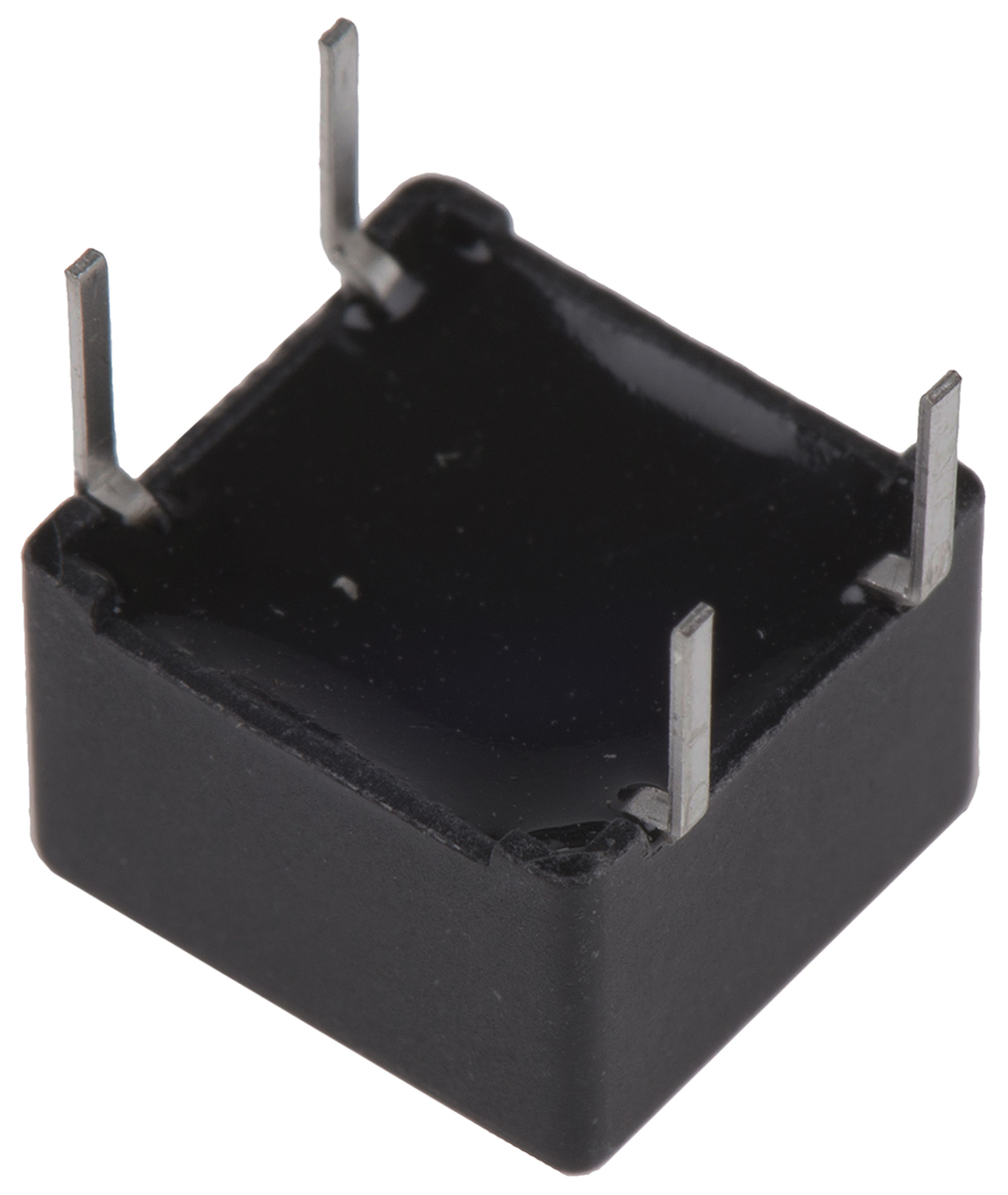

Through Hole Pulse Transformer 2:1 Turns Ratio, 2000μH Prim. Inductance, 0.6Ω Prim. Resistance
Manufacturer:
Murata Power Solutions
Manufacturer Part No:
78604/1C
Enrgtech Part No:
ET14160397
Warranty:
Manufacturer
£ 1.29
Checking for live stock
Primary Inductance:
2000µH
Primary DC Resistance:
0.6Ω
Turns Ratio:
2:1
Mounting Type:
Through Hole
Leakage Inductance:
0.99µH
Dimensions:
9.52 x 9 x 6.35mm
Depth:
6.35mm
Length:
9.52mm
Width:
9mm
Minimum Temperature:
0°C
Maximum Temperature:
+70°C
