Murata Pulse Transformers, 1000 Series
The 1000 series Pulse Transformers are intended for wideband and pulse operations. They are also suitable for signal isolation and use in small isolated power supplies.
The compact footprint makes them ideal for applications where space is at a premium
Isolation to 4kVrms
The compact footprint makes them ideal for applications where space is at a premium
Isolation to 4kVrms

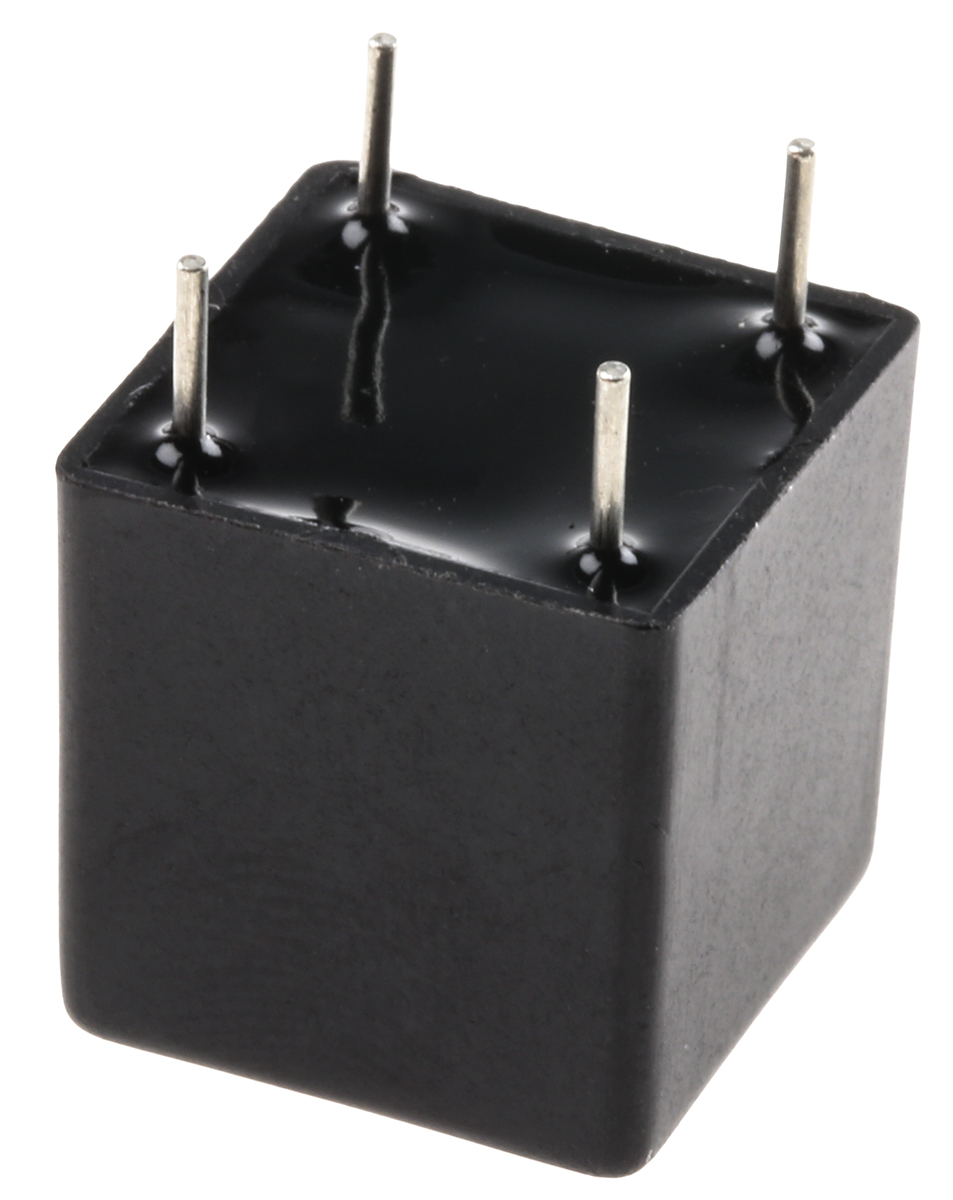

PCB Mount Pulse Transformer 1:1 Turns Ratio, 3mH Prim. Inductance, 1.2Ω Prim. Resistance
Manufacturer:
Murata Power Solutions
Manufacturer Part No:
1001C
Enrgtech Part No:
ET16763988
Warranty:
Manufacturer
£ 3.52
Checking for live stock
Primary Inductance:
3mH
Primary DC Resistance:
1.2Ω
Secondary DC Resistance:
1Ω
Turns Ratio:
1:1
Mounting Type:
PCB Mount
Leakage Inductance:
22µH
Dimensions:
15.06 x 15.06 x 15.75mm
Depth:
15.75mm
Length:
15.06mm
Width:
15.06mm
Maximum Temperature:
+70°C
Minimum Temperature:
0°C
