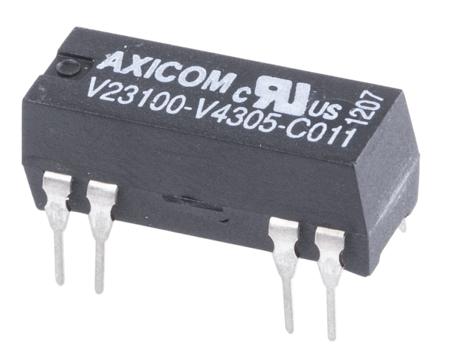

2-1393763-3 TE Connectivity PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 200Ω
2-1393763-3 TE Connectivity PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 200Ω

TE Connectivity PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 200Ω

TE Connectivity PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 200Ω

Manufacturer:
TE Connectivity
Manufacturer Part No:
2-1393763-3
Enrgtech Part No:
ET100381696
Warranty:
Manufacturer
£ 23.86 £ 23.86
Checking for live stock
Contact Configuration:
SPDT
Coil Voltage:
5V dc
Mounting Type:
PCB Mount
Maximum Switching Voltage AC:
175V ac
Maximum Switching Voltage DC:
175V dc
Coil Power:
50mW
Coil Resistance:
200Ω
Length:
19.3mm
Height:
7.5mm
Depth:
7mm
Dimensions:
19.3 x 7 x 7.5mm
Isolation Coil To Contact:
1.5kV rms
Special Features:
High Vibration and Shock Resistance, Highly Reliable Switching
Maximum Switching Power AC:
3VA
Life:
5000000 (Electrical)Cycles
Operating Time Including Bounce:
1.1ms
Maximum Switching Power DC:
3 W
Contact Resistance:
150 mΩ
Minimum Operating Temperature:
-40°C
Contact Material:
Ruthenium
Maximum Operating Temperature:
+85°C
Operating Temperature Range:
-40 → +85°C
Terminal Type:
Through Hole
pdf icon
0900766b813980e6.pdf(datasheets)
