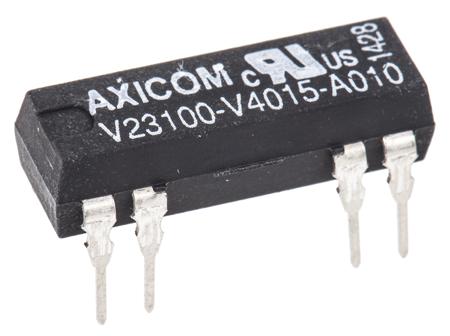

PCB Mount Reed Relay, 15V dc Coil, SPST, 0.5 A Max, 2000Ω

Contact Configuration:

SPST

Coil Voltage:

15V dc

Mounting Type:

PCB Mount

Maximum Switching Current DC:

0.5 A

Coil Power:

113mW

Coil Resistance:

2000Ω

Length:

19.3mm

Height:

5.1mm

Depth:

6.4mm

Dimensions:

19.3 x 6.4 x 5.1mm

Isolation Coil To Contact:

1.5kV dc

Maximum Operating Temperature:

+85°C

Minimum Operating Temperature:

-40°C

Contact Material:

Rhodium

Terminal Type:

Through Hole

Maximum Switching Power DC:

10 W

Operating Time Including Bounce:

0.75ms

Operating Temperature Range:

-40 → +85°C

Maximum Switching Power AC:

10VA
