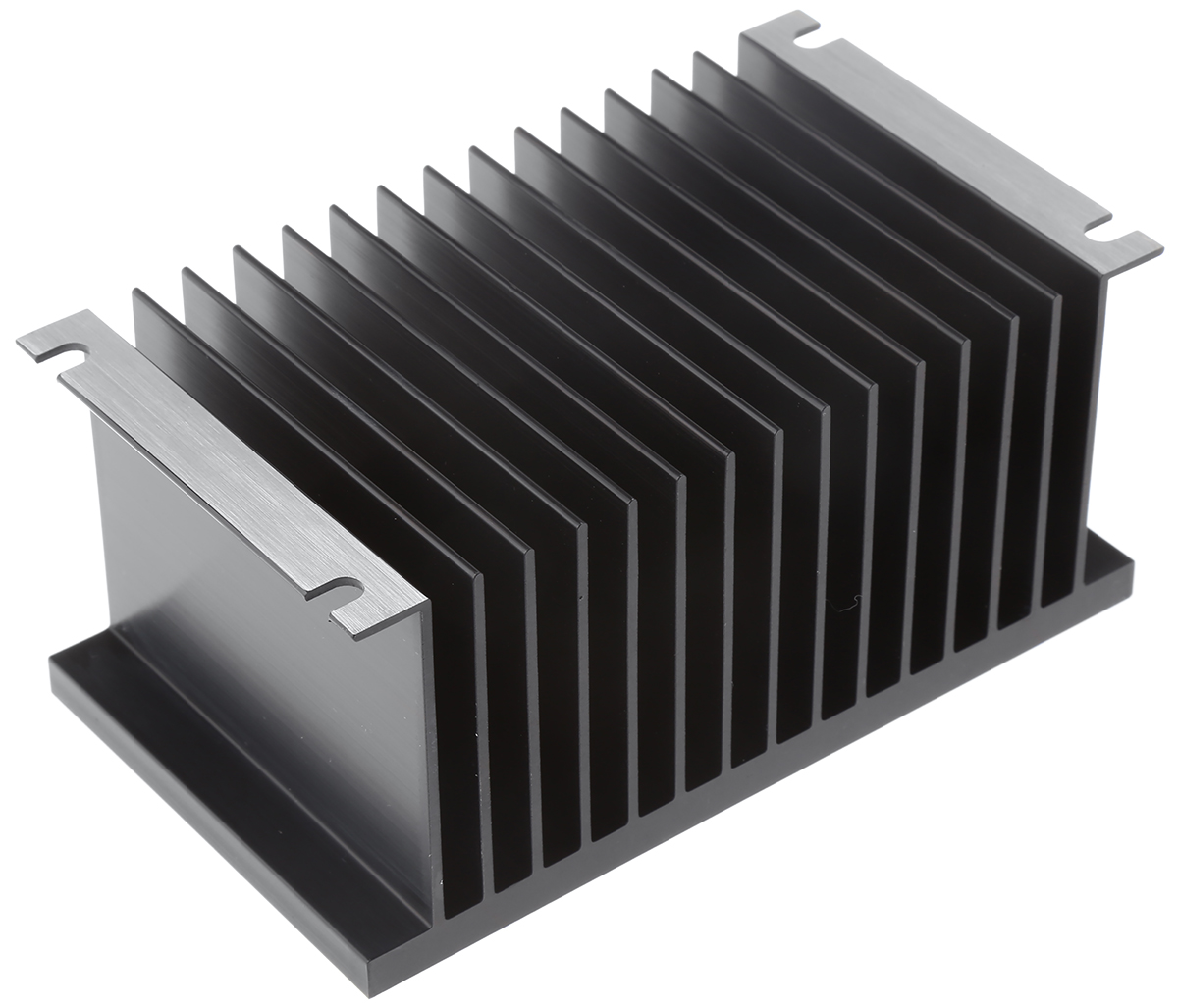

Sensata | Crydom Relay Heat Sink, 1.0°C/W Thermal Resistance, Aluminium Material - HS103 Series - HS103 Keep your SSR out of the hot seat with this heat sink from Sensata | Crydom. It helps with heat dissipation, so there's less chance of your relay overheating and failing. For versatility, this device is compatible with one, two or three-phase single or dual SSRs. A robust aluminium construction offers resistance to corrosion and impact, so it's suitable for use in harsh environments. As aluminium is recyclable, you can rest assured this component has a light carbon footprint. You'll find products like this one in applications such as lighting, heating and conveyor systems. Features & Benefits • Thermal resistance of 1.0°C/W to effectively dampen heat
• Anodised finish that resists wear for an extended service life
• Comes with mounting holes to make installation a breeze
• Accepts a fan size of 2 to 40mm to assist with the dissipation of hot air Where do I mount this heat sink? This heat sink is designed for panel mounting. Its light weight of 440g means it will place minimal strain on your panel.
