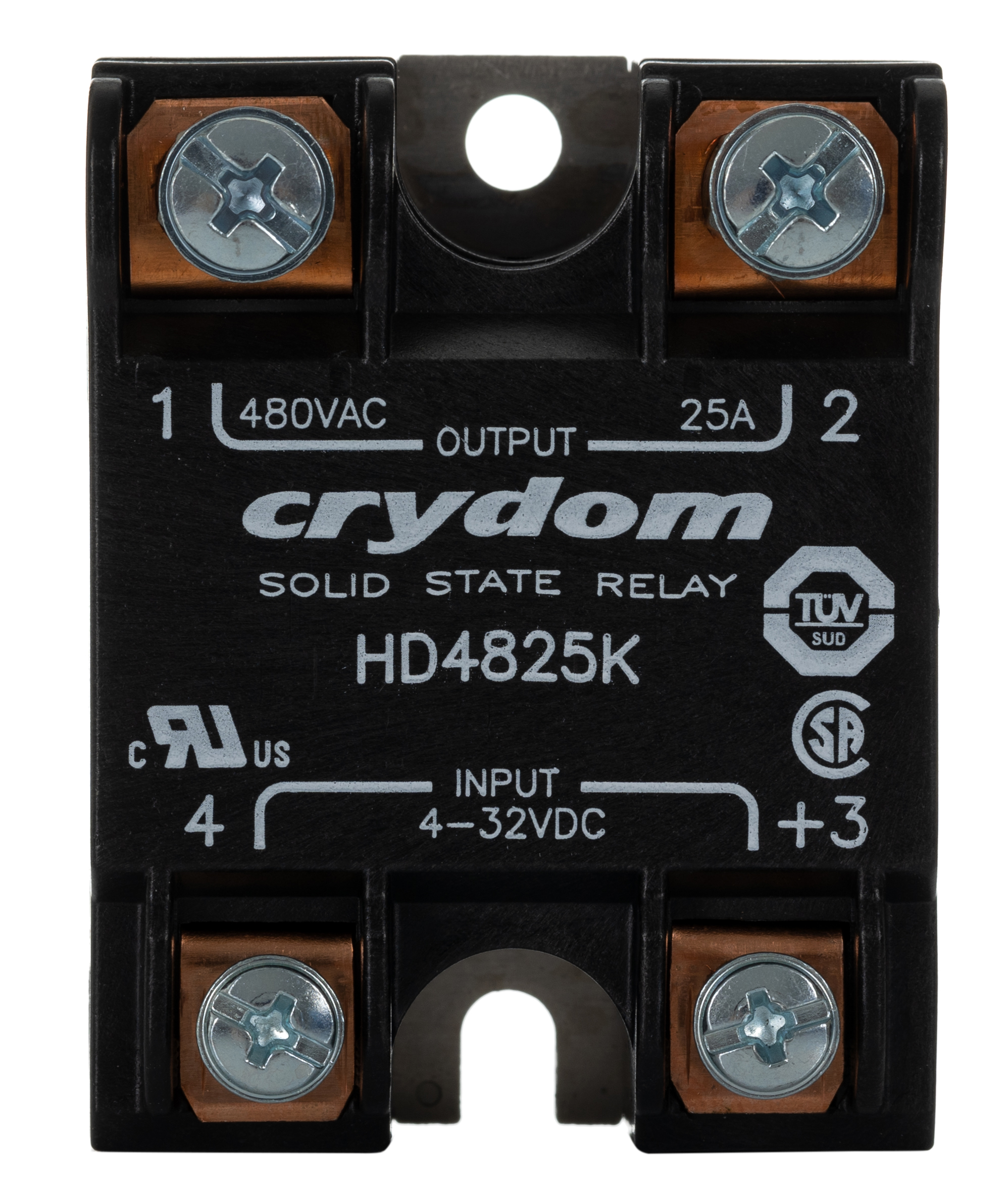

Crydom HA/HD Series Solid State Relays Crydom HA/HD series robust and versatile panel mount solid state relays. These powerful SSRs have superior thermal performance thanks to the use of DBC technology. The HA/HD series solid state relays feature anti-rotation barriers, flexible control voltage options and a wide range of power ratings. Features and Benefits SCR output for heavy industrial loads Zero Voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Anti-rotation barriers AC or DC control Direct Bond Copper (DBC) substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design

<B>Sensata | Crydom Solid-State Relay, 0.2 to 3.3mm² Input Wire Size Range, 125A Rated Load Current - HD60 Series - HD60125</B> Keep up with your appliance control needs with this Sensata | Crydom solid-state relay. It works using handy semiconductors that respond to commands quickly, opening and closing circuits in the blink of an eye. As there are no mechanical parts, there's minimal risk of wear for a long service life. You can mount the unit using a simple screw and washer, making it a breeze to install. A direct-bond copper substrate helps the device keep its cool under the strain of heavy switching tasks. Relays like this one are used to manage gear in packing plants and the construction industry. <B>Features & Benefits</B> • Rated load current of 125A to handle large electrical loads<BR/>• Screw terminals for secure electrical connections<BR/>• Flame-retardant housing for safety in the event of a fire<BR/>• Wide operating temperature range between -40°C and +80°C for use in tough industrial environments <B>What's the operating voltage range of this relay?</B> This component has a wide operating voltage range of 48 to 660V AC, making it a versatile choice.

Crydom HA/HD Series Solid State Relays Crydom HA/HD series robust and versatile panel mount solid state relays. These powerful SSRs have superior thermal performance thanks to the use of DBC technology. The HA/HD series solid state relays feature anti-rotation barriers, flexible control voltage options and a wide range of power ratings. Features and Benefits SCR output for heavy industrial loads Zero Voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Anti-rotation barriers AC or DC control Direct Bond Copper (DBC) substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design

<B>Sensata | Crydom Solid-State Relay, </B><B>1/2 Cycle Turn-On Time, 50A Rated Load Current</B><B> - HD Series - HD6050</B> Make or break your electric circuit with this solid-state relay from Sensata | Crydom. When it receives electrical energy, it switches it to a light signal, sending power to your circuit in a flash. This unit works without any moving components, so there's minimal risk of wear and tear to make maintenance a thing of the past. Thanks to the wide operating temperature range between -40°C and +80°C, it stays strong in harsh environments. You can use this SSR to control your lighting fixtures and robotics equipment. <B>Features & Benefits</B> • Rated load current of 50A for use in heavy-duty equipment<BR/>• MTBF of 11,641,553 hours at +40°C for long-lasting performance<BR/>• Durable aluminium baseplate offers resistance to corrosion and impact <B>What's the switching time of this SSR?</B> Thanks to its quick turn-on and turn-off time of half a cycle, you can rest assured this SSR will switch power to your circuit rapidly. <B>How do I mount this SSR?</B> Thanks to its panel mounting design, you can install this SSR by simply screwing it to the surface of your device.

<B>Sensata | Crydom Solid-State Relay, 8pF I/O Capacitance, Aluminium Baseplate Material - 1-DC Series - D5D07</B> Looking for a reliable switching solution for your low-power DC loads? Make the change to this solid-state relay from Sensata | Crydom. It opens and closes your circuit based on control signals sent to its sensor, eliminating the need for manual operation. This unit's self-extinguishing housing is a safe bet for volatile settings, as it stops burning in 10 seconds or less in the event of a fire. Screw terminals make it a cinch to connect wires without the need for special tools. The device stands strong in the face of vibration thanks to integrated anti-rotation barriers. You'll find relays like this used in industrial automation. <B>Features & Benefits</B> • Safe for use in harsh environments, thanks to its broad operating temperature range between -20°C and +80°C<BR/>• MTBF of more than 21 million hours at +40°C for long-term performance<BR/>• Current rating of 7A for use in light-duty applications<BR/>• Epoxy-free design reduces the risk of deformation due to expansion and contraction during operation <B>How do I mount this SSR?</B> The unit is designed for direct surface mounting on your panel to make installation a snap.

<B>Sensata | Crydom Solid-State Relay, 7A Rated Load Current, -40°C to +100°C Operating Temperature Range - 1-DC Series - D1D07</B> Switch power on and off in your industrial equipment using this solid-state relay from Sensata |<B></B>Crydom. It converts the input electrical signal to an optical one to activate the circuits. As there are no moving contacts, there's minimal risk of mechanical wear, helping to ensure a longer service life. This unit has anti-rotation barriers in its housing for secure installation. You can use this SSR to control robotic and electronic devices. <B>Features & Benefits</B> • Tough aluminium baseplate is resistant to impact and corrosion<BR/>• Broad operating temperature range between -40°C and +100°C for use in challenging environments<BR/>• Screw and clamp terminals for simple and secure wiring <B>How durable is this SSR?</B> This relay has an MTBF of over 21 million hours at a temperature of +40°C and over 11.5 million hours at +60°C, so you can rest assured it will last a long time. <B>How fast is this relay?</B> Thanks to its maximum turn-on and turn-off time of 100μs, this relay provides quick power transmission to your circuits.

25 A with Integrated Heat Sink, PF Series High nominal current in steady state<BR/>Low leakage value in off-state<BR/>SCR output<BR/>AC or DC control

PF Series-25A at 12 to 660Vac in SIL with Integrated Heatsink Ultra high steady state current rating<BR/>Low leakage (off-state)<BR/>SCR output<BR/>AC or DC controlled versions<BR/>Surge current peak: 250A<BR/>Input-Output capacitance: 8pF<BR/>Operating temperature range: -40 → +80°C<BR/>Zero-cross switching where stated otherwise random-fire<BR/>Dimensions H49.1mm x W22.8mm x D43.1mm

<B>Sensata | Crydom Solid-State Relay, 24.1mm Length, 5.1mm Width - DMO Series - DMO063</B> Looking for a reliable switching solution for your machinery? Choose this solid-state relay from Sensata |<B></B>Crydom. When it receives an input power supply, it transfers it to the electrical circuits to turn them on or off. For versatility, this unit has a broad operating voltage range between 0 and 60V DC. Thanks to its compact dimensions of 24.1 (L) x 5.1 (W) x 12.7mm (H), you can easily fit it into small spaces. You'll typically find this relay used in lighting fixtures and electric motors. <B>Features & Benefits</B> • Maximum turn-on time of 50μs and turn-off time of 300μs for rapid switching<BR/>• Wide operating temperature range between -30°C and +80°C for use in demanding conditions <B>What's the difference between a solid-state relay and an electromechanical relay?</B> A solid-state relay powers the circuits by converting the electrical signal to an optical one, eliminating the need for physical contacts. An electromechanical relay works by closing or opening a set of contacts when it receives an electrical supply. <B>How do I mount this solid-state relay?</B> Thanks to its PCB mounting design, you can mount this solid-state relay by soldering the built-in pins to your circuit board.

PF Series-25A at 12 to 660Vac in SIL with Integrated Heatsink Ultra high steady state current rating<BR/>Low leakage (off-state)<BR/>SCR output<BR/>AC or DC controlled versions<BR/>Surge current peak: 250A<BR/>Input-Output capacitance: 8pF<BR/>Operating temperature range: -40 → +80°C<BR/>Zero-cross switching where stated otherwise random-fire<BR/>Dimensions H49.1mm x W22.8mm x D43.1mm

<B>Sensata | Crydom Solid-State Relay, 2A Current Rating, SCR Output - AO/ASO Series - ASO242</B> Automatically start or put the brakes on an electric load with this solid-state relay from Sensata | Crydom. It converts an incoming electrical control signal into an optical one without its contacts physically touching. This gives you the benefit of an almost instant turn-on time of half a cycle and reduced wear for long-lasting performance. A light weight of just 4.3g means it puts minimal strain on your PCB to take a weight off your shoulders. Choose an SSR like this one for your industrial motor control or robotics applications. <B>Features & Benefits</B> • Wide operating temperature range between -30°C and +80°C for use in demanding environments<BR/>• Encapsulated in thermally conductive epoxy, which dissipates heat and helps to keep the relay cool<BR/>• SCR output uses minimal power for energy efficiency<BR/>• Zero-cross switching to minimise line noise for interference-free communication <B>What's the operating voltage range of this SSR?</B> This relay has a broad operating voltage range between 24 and 280V AC, so it's compatible with a wide variety of low-voltage electrical systems.

<B>Sensata | Crydom Solid-State Relay, Zero-Cross Switching, 48 to 530V AC Operating Voltage Range - CX Series - CXE380D5</B> When you want switching you can rely on, opt for this solid-state relay from Sensata | Crydom. It works by converting an electrical signal to an optical one and sending it to the circuits. The zero-cross switching function means this unit switches power when the load voltage is near 0V, helping to block off high-frequency noises for clean and clear signal delivery. This component is a flawless fit for sensitive applications such as robotics and medical appliances. <B>Features & Benefits</B> • Maximum surge current of 250Apk to stand up to current overloads<BR/>• Compact external dimensions of 25.4 (H) x 43.1 (L) x 7.6mm (D) for space-saving mounting<BR/>• Maximum turn-on and turn-off time of half a cycle for rapid switching<BR/>• Broad operating temperature range between -30°C and +80°C for use in challenging environments <B>What's the operating voltage of this SSR?</B> This SSR has a broad operating voltage range between 48 and 530V AC, so it's suitable for use in low to medium-power electrical systems. <B>How do I mount this SSR?</B> To mount this SSR, simply solder the attached pins to your board.
