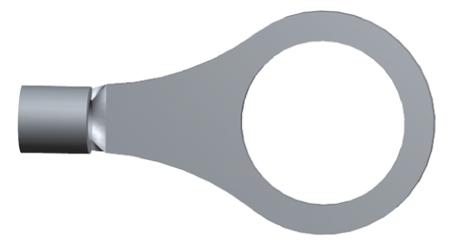

TE Connectivity Budget Style Ring Tongue Terminals
A range of closed barrel tin plated copper ring tongue terminals that accept a 26-22 AWG wire size and a wire/cable termination CMA size of 202-810 (0.1 to 0.41mm2). These budget style ring tongue terminals have a maximum operating temperature range of 170°C maximum.
, Budget Uninsulated Ring Terminal, M4 (#8) Stud Size, 0.1mm² to 0.4mm² Wire Size
Manufacturer:
TE Connectivity
Manufacturer Part No:
32859
Enrgtech Part No:
ET13826058
Warranty:
Manufacturer
£ 111.00
Checking for live stock
Series:
Budget
Insulation:
Uninsulated
Outer Ring Diameter:
6.35mm
Inner Ring Diameter:
4.34mm
Maximum Wire Size mm²:
0.4mm²
Minimum Wire Size mm²:
0.1mm²
Minimum Wire Size AWG:
26AWG
Maximum Wire Size AWG:
22AWG
Stud Size:
M4 (#8)
Contact Plating:
Tin
Contact Material:
Copper
Thickness:
0.46mm
