TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily. Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

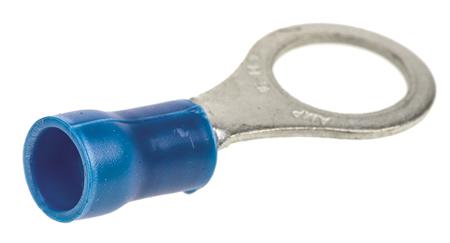

TE Connectivity , PLASTI-GRIP Insulated Ring Terminal, M8 Stud Size, 1mm² to 2.6mm² Wire Size, Blue

Manufacturer:
Manufacturer Part No:
34163
Enrgtech Part No:
ET13890804
Warranty:
Manufacturer
£ 0.3700
Checking for live stock
Series:
PLASTI-GRIP
Insulation:
Insulated
Insulation Material:
Vinyl
Inner Ring Diameter:
8.33mm
Outer Ring Diameter:
11.91mm
Minimum Wire Size mm²:
1mm²
Maximum Wire Size mm²:
2.6mm²
Maximum Wire Size AWG:
14AWG
Minimum Wire Size AWG:
16AWG
Stud Size:
M8
Colour:
Blue
Contact Plating:
Tin
Contact Material:
Copper
Thickness:
0.79mm
Overall Length:
27.69mm
pdf icon
342146-1Terminals and Splices Ring & Spade Tongue Terminals Product Information-641c55eb(datasheets)
pdf icon
COSSE-d8fa1a82(datasheets)
