TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily. Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

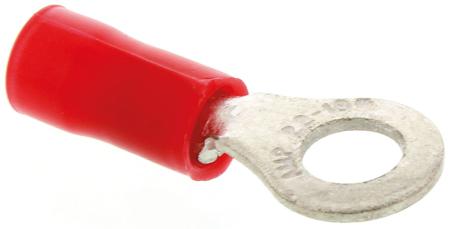

TE Connectivity , PLASTI-GRIP Insulated Crimp Ring Terminal, M4 Stud Size, 0.26mm² to 1.65mm² Wire Size, Red

Manufacturer:
Manufacturer Part No:
34148
Enrgtech Part No:
ET13890843
Warranty:
Manufacturer
£ 0.2400
Checking for live stock
Series:
PLASTI-GRIP
Insulation:
Insulated
Insulation Material:
Vinyl
Outer Ring Diameter:
7.92mm
Inner Ring Diameter:
4.17mm
Minimum Wire Size mm²:
0.26mm²
Maximum Wire Size mm²:
1.65mm²
Minimum Wire Size AWG:
22AWG
Maximum Wire Size AWG:
16AWG
Stud Size:
M4
Colour:
Red
Contact Material:
Copper
Contact Plating:
Tin
Overall Length:
21.74mm
pdf icon
CSA 7189-c1960454(datasheets)
pdf icon
Datasheet - 34148-fea566cf(datasheets)
Discover ring terminals designed for secure electrical connections. Enrgtech offers crimp connectors and wire lugs for reliable wiring and circuit terminations.
