TE Connectivity SOLISTRAND STRATO-THERM High Temperature Ring Tongue Crimp Terminals
SOLISTRAND STRATO-THERM high temperature ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM high temperature ring tongue crimp terminals are made from solid nickel and designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM high temperature ring tongue crimp terminals is 649°C (1200°F).

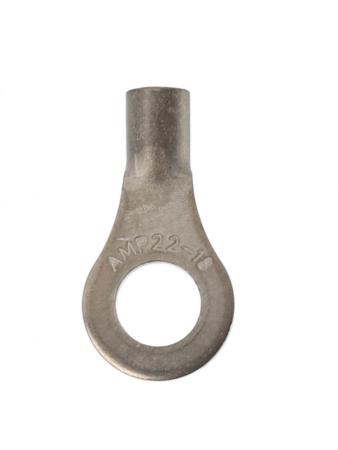

, STRATO-THERM Uninsulated Ring Terminal, M4 Stud Size, 0.26mm² to 1.65mm² Wire Size
Manufacturer:
TE Connectivity
Manufacturer Part No:
321895
Enrgtech Part No:
ET13916905
Warranty:
Manufacturer
£ 1.94
Checking for live stock
Series:
STRATO-THERM
Insulation:
Uninsulated
Inner Ring Diameter:
4.34mm
Outer Ring Diameter:
7.92mm
Maximum Wire Size mm²:
1.65mm²
Minimum Wire Size mm²:
0.26mm²
Maximum Wire Size AWG:
16AWG
Minimum Wire Size AWG:
22AWG
Stud Size:
M4
Contact Material:
Nickel
Thickness:
0.76mm
Overall Length:
15.77mm
