TE Connectivity SOLISTRAND STRATO-THERM High Temperature Ring Tongue Crimp Terminals
SOLISTRAND STRATO-THERM high temperature ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM high temperature ring tongue crimp terminals are made from solid nickel and designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM high temperature ring tongue crimp terminals is 649°C (1200°F).

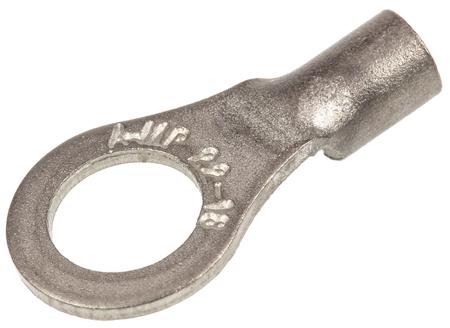

, STRATO-THERM Insulated Ring Terminal, M5 Stud Size, 0.26mm² to 1.65mm² Wire Size, Grey
Manufacturer:
TE Connectivity
Manufacturer Part No:
321896
Enrgtech Part No:
ET13970927
Warranty:
Manufacturer
£ 1.24
Checking for live stock
Series:
STRATO-THERM
Insulation:
Insulated
Inner Ring Diameter:
5mm
Minimum Wire Size mm²:
0.26mm²
Maximum Wire Size mm²:
1.65mm²
Maximum Wire Size AWG:
16AWG
Minimum Wire Size AWG:
22AWG
Stud Size:
M5
Colour:
Grey
Contact Material:
Nickel
Thickness:
0.76mm
Overall Length:
15.77mm
