TE Connectivity PIDG Ring Tongue Wire Crimp Terminals PIDG (Pre-Insulated Diamond Grip) ring tongue wire crimp terminals designed for uniform reliability in the most difficult circuit environments. These PIDG ring tongue terminals consist of a precision-formed high conductivity copper body and barrel. Inside the barrel are serrations which provide maximum contact and tensile strength after crimping. The wire barrel is surrounded with copper sleeve which provides improved wire insulation support and prevents fraying. An outer colour coded nylon sleeve aids wire size identification and a funnelled entry prevents turned back wire strands allowing fast wire insertion during high-speed production. The construction of these PIDG terminals and the use of specialised tool dies allows a uniform and reliable crimp to be produced. Available with various wire, barrel and stud sizes, these PIDG ring terminals offer a versatile solution to a wide range of wiring applications Features and Benefits • High conductivity copper body
• Copper sleeve for improved wire insulation support
• Serrations in wire barrel for maximum contact and tensile strength
• Colour coded sleeves for easy wire size and tooling identification
• Funnelled wire entry for easy wire insertion
• Design enables a reliable and uniform crimp Applications These PIDG wire terminals are suitable for use in a wide range of applications with many terminals meeting or exceeding the requirements of MIL-T-7928, Type II, Class 1 and 2. Applications include instruments/control, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace and appliances.

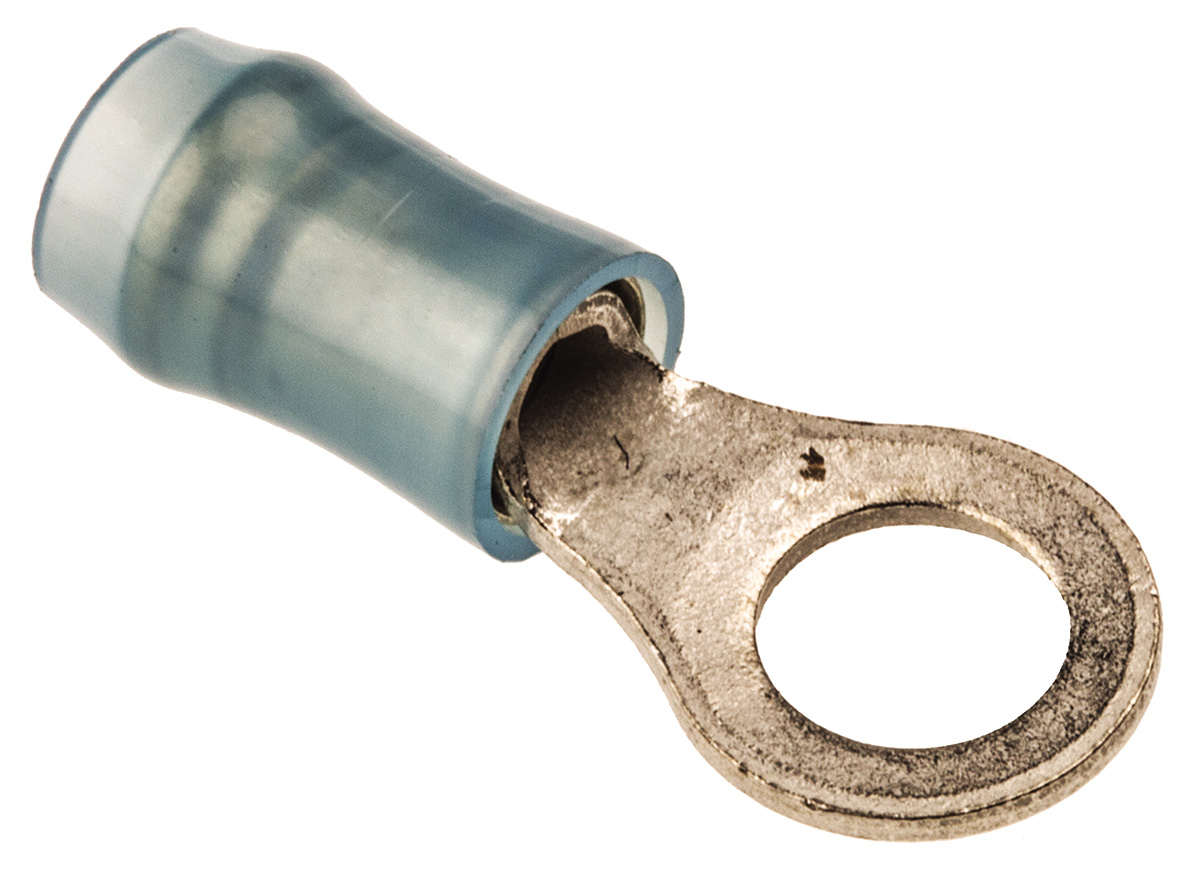

TE Connectivity , PIDG Insulated Ring Terminal, M5 Stud Size, 1mm² to 2.6mm² Wire Size, Blue

Manufacturer:
Manufacturer Part No:
130094
Enrgtech Part No:
ET14010234
Warranty:
Manufacturer
Checking for live stock
Series:
PIDG
Insulation:
Insulated
Insulation Material:
Nylon
Inner Ring Diameter:
5mm
Outer Ring Diameter:
8.7mm
Maximum Wire Size mm²:
2.6mm²
Minimum Wire Size mm²:
1mm²
Maximum Wire Size AWG:
14AWG
Minimum Wire Size AWG:
16AWG
Stud Size:
M5
Colour:
Blue
Contact Material:
Copper
Contact Plating:
Tin
Overall Length:
21.6mm
pdf icon
Datasheet-36f844a4(datasheets)
