TE Connectivity Heavy Duty PLASTI-GRIP Ring Tongue Wire Crimp Terminals PLASTI-GRIP heavy duty closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily. These PLASTI-GRIP ring tongue crimp connectors have a heavy duty design for extra mechanical strength.

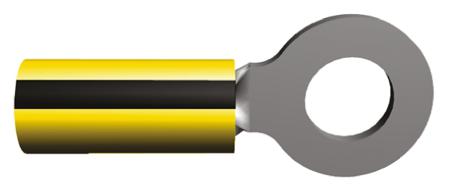

TE Connectivity , PLASTI-GRIP Insulated Ring Terminal, M6 (1/4) Stud Size, 1mm² to 2.6mm² Wire Size, Yellow

Manufacturer:
Manufacturer Part No:
35349
Enrgtech Part No:
ET14125254
Warranty:
Manufacturer
£ 0.6700
Checking for live stock
Series:
PLASTI-GRIP
Insulation:
Insulated
Insulation Material:
PVC
Inner Ring Diameter:
6.73mm
Outer Ring Diameter:
12.7mm
Maximum Wire Size mm²:
2.6mm²
Minimum Wire Size mm²:
1mm²
Minimum Wire Size AWG:
16AWG
Maximum Wire Size AWG:
14AWG
Stud Size:
M6 (1/4)
Colour:
Yellow
Contact Plating:
Tin
Contact Material:
Copper
Thickness:
1.22mm
Overall Length:
30.18mm
pdf icon
Plasti-Grip Ring Tongue Terminal, 16-14 AWG-e81c914e(datasheets)
Discover ring terminals designed for secure electrical connections. Enrgtech offers crimp connectors and wire lugs for reliable wiring and circuit terminations.
