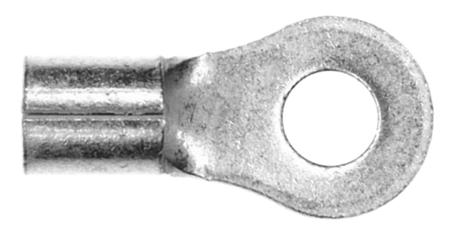

31113 TE Connectivity, Budget Uninsulated Ring Terminal, M4 (#8) Stud Size, 2.6mm² to 6.6mm² Wire Size

TE Connectivity Budget Style Ring Tongue Terminals A range of closed barrel tin plated copper ring tongue terminals that accept a 26-22 AWG wire size and a wire/cable termination CMA size of 202-810 (0.1 to 0.41mm²). These budget style ring tongue terminals have a maximum operating temperature range of 170°C maximum.

For more information please check the datasheets.

TE Connectivity , Budget Uninsulated Ring Terminal, M4 (#8) Stud Size, 2.6mm² to 6.6mm² Wire Size

Manufacturer:

TE Connectivity

Manufacturer Part No:

31113

Enrgtech Part No:

ET16717120

Warranty:

Manufacturer

£ 0.2400

Checking for live stock

Series:

Budget

Insulation:

Uninsulated

Outer Ring Diameter:

9.53mm

Inner Ring Diameter:

4.34mm

Minimum Wire Size mm²:

2.6mm²

Maximum Wire Size mm²:

6.6mm²

Minimum Wire Size AWG:

12AWG

Maximum Wire Size AWG:

10AWG

Stud Size:

M4 (#8)

Contact Material:

Copper

Contact Plating:

Tin

Thickness:

0.99mm

Budget Ring Tongue Terminal, 12-10 AWG-72e66efa(datasheets)

Discover ring terminals designed for secure electrical connections. Enrgtech offers crimp connectors and wire lugs for reliable wiring and circuit terminations.

TE Connectivity , Budget Uninsulated Ring Terminal, M4 (#8) Stud Size, 2.6mm² to 6.6mm² Wire Size
