TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily. Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

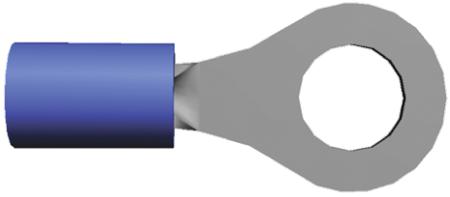

TE Connectivity , PLASTI-GRIP Insulated Ring Terminal, M12 (1/2) Stud Size, 10.5mm² to 16.77mm² Wire Size, Blue

Manufacturer:
Manufacturer Part No:
52350
Enrgtech Part No:
ET16717827
Warranty:
Manufacturer
£ 2.6900
Checking for live stock
Series:
PLASTI-GRIP
Insulation:
Insulated
Insulation Material:
Vinyl
Inner Ring Diameter:
13.08mm
Outer Ring Diameter:
20.7mm
Minimum Wire Size mm²:
10.5mm²
Maximum Wire Size mm²:
16.77mm²
Maximum Wire Size AWG:
6AWG
Minimum Wire Size AWG:
6AWG
Stud Size:
M12 (1/2)
Colour:
Blue
Contact Material:
Copper
Contact Plating:
Tin
Thickness:
1.14mm
Overall Length:
47.02mm
pdf icon
Ring Terminal,6 AWG, Plasti-Grip, stud size 1/2 - 52350-2b2b5b69(datasheets)
