TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily. Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

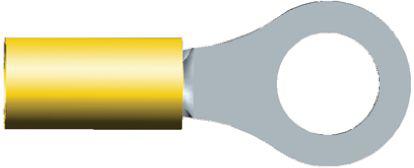

TE Connectivity , PLASTI-GRIP Insulated Ring Terminal, M10 (3/8) Stud Size, 2.6mm² to 6.6mm² Wire Size, Yellow

Manufacturer:
Manufacturer Part No:
34173
Enrgtech Part No:
ET22075697
Warranty:
Manufacturer
£ 0.4000
Checking for live stock
Series:
PLASTI-GRIP
Insulation:
Insulated
Insulation Material:
Nylon
Outer Ring Diameter:
15.06mm
Inner Ring Diameter:
9.91mm
Minimum Wire Size mm²:
2.6mm²
Maximum Wire Size mm²:
6.6mm²
Minimum Wire Size AWG:
12AWG
Maximum Wire Size AWG:
10AWG
Stud Size:
M10 (3/8)
Colour:
Yellow
Contact Plating:
Tin
Contact Material:
Copper
Thickness:
1.02mm
Overall Length:
36.09mm
pdf icon
Datasheet - 34173-c9557de7(datasheets)
Discover ring terminals designed for secure electrical connections. Enrgtech offers crimp connectors and wire lugs for reliable wiring and circuit terminations.
