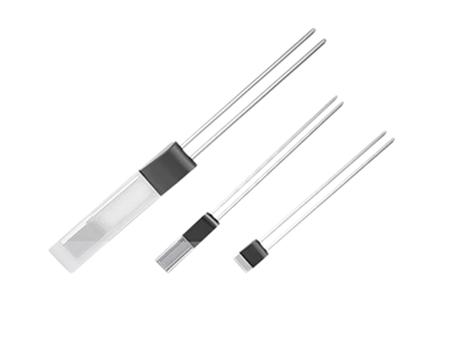

TE Connectivity PTF Series Temperature Sensors
TE Connectivity’s MEAS PTF series of temperature sensors offer high long term stability. Ideal for use in feedback control systems, these RTDs offer a low time constant, low mass and a small outline. Encased in a glass coating, the PTF series is constructed of structured platinum film on a ceramic substrate.
Suitable applications for these temperature sensors include medical, automotive, sensing elements for plug in probes, temperature feedback control, white goods and industrial applications Wide temperature range
Conform to DIN EN 60751 standard for platinum temperature sensors
Global interchangeability
Low drift over lifetime
Low thermal mass
Fast response time
Suitable applications for these temperature sensors include medical, automotive, sensing elements for plug in probes, temperature feedback control, white goods and industrial applications Wide temperature range
Conform to DIN EN 60751 standard for platinum temperature sensors
Global interchangeability
Low drift over lifetime
Low thermal mass
Fast response time
PT100 RTD Sensor, 2mm Dia, 2.3mm Long, Chip, 0.3 % +600°C Max
Manufacturer:
TE Connectivity
Manufacturer Part No:
NB-PTCO-002
Enrgtech Part No:
ET13845756
Warranty:
Manufacturer
£ 3.03
Checking for live stock
Sensor Type:
PT100
Probe Length:
2.3mm
Probe Diameter:
2mm
Minimum Temperature Sensed:
-50°C
Maximum Temperature Sensed:
+600°C
Termination Type:
Solder
Process Connection:
Chip
Accuracy:
0.3 %
Response Time:
0.2 (Water) s, 10 (Air) s
