PNOZmulti Mini Base Unit, Safety Controller The PNOZmulti Mini configurable safety relay from Pilz has an integral LCD display which provides status information and diagnostic messages. This safety controller has all the functions of the established PNOZmulti yet is only a space saving 45mm wide. A major advantage of the PNOZmulti Mini is that all required functions are configured directly via a PC running the PNOZmulti Configurator Software, instead of relying on wiring together different safety relays. 20 inputs 4 safe semiconductor outputs 4 test pulse outputs LCD display for information and diagnostics USB configuration interface Can be configured using the PNOZmulti Configurator Compatible with PNOZmulti Approvals UL/cUL, EC, TÜV, BG, CCC Safety Controller

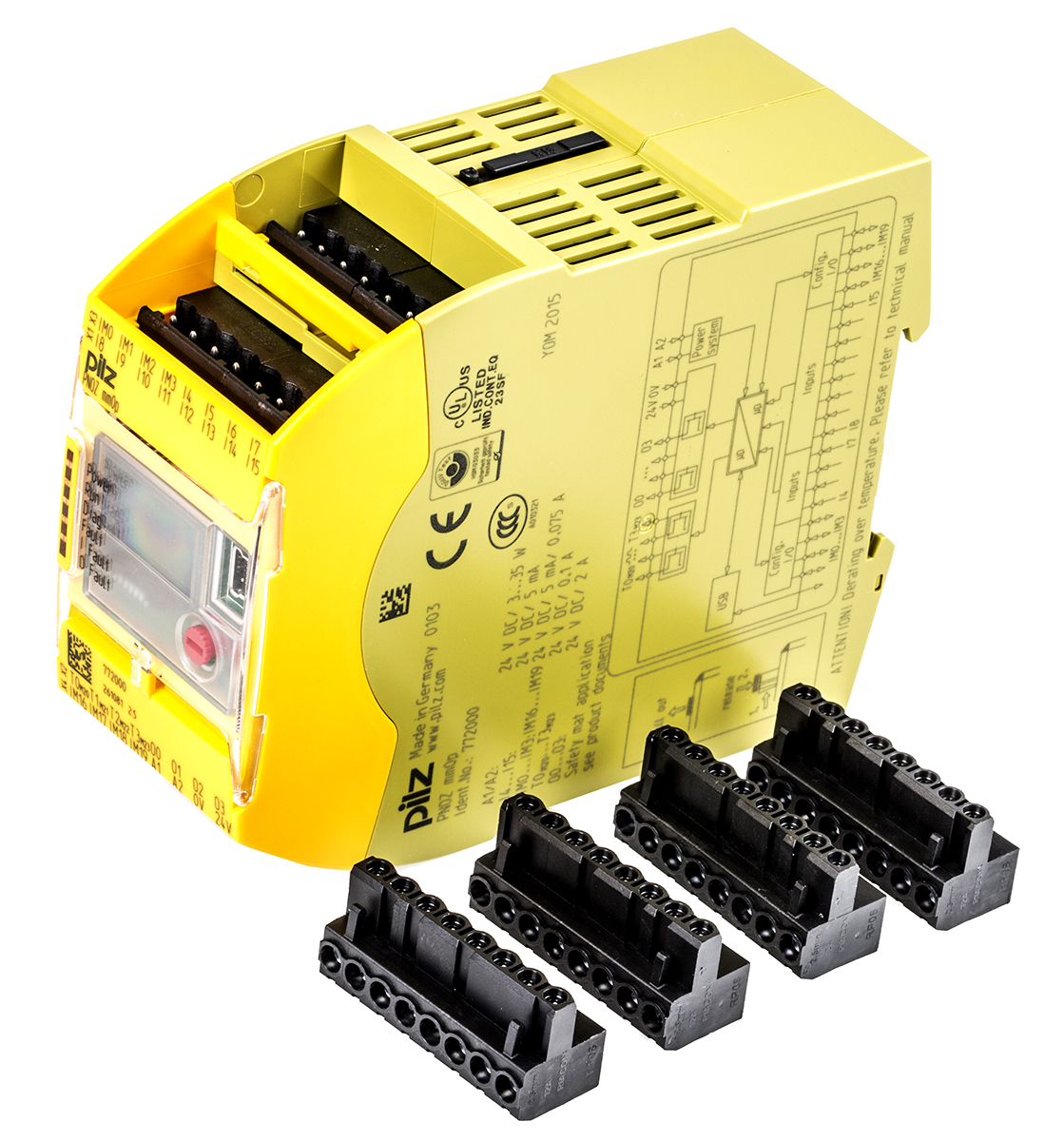

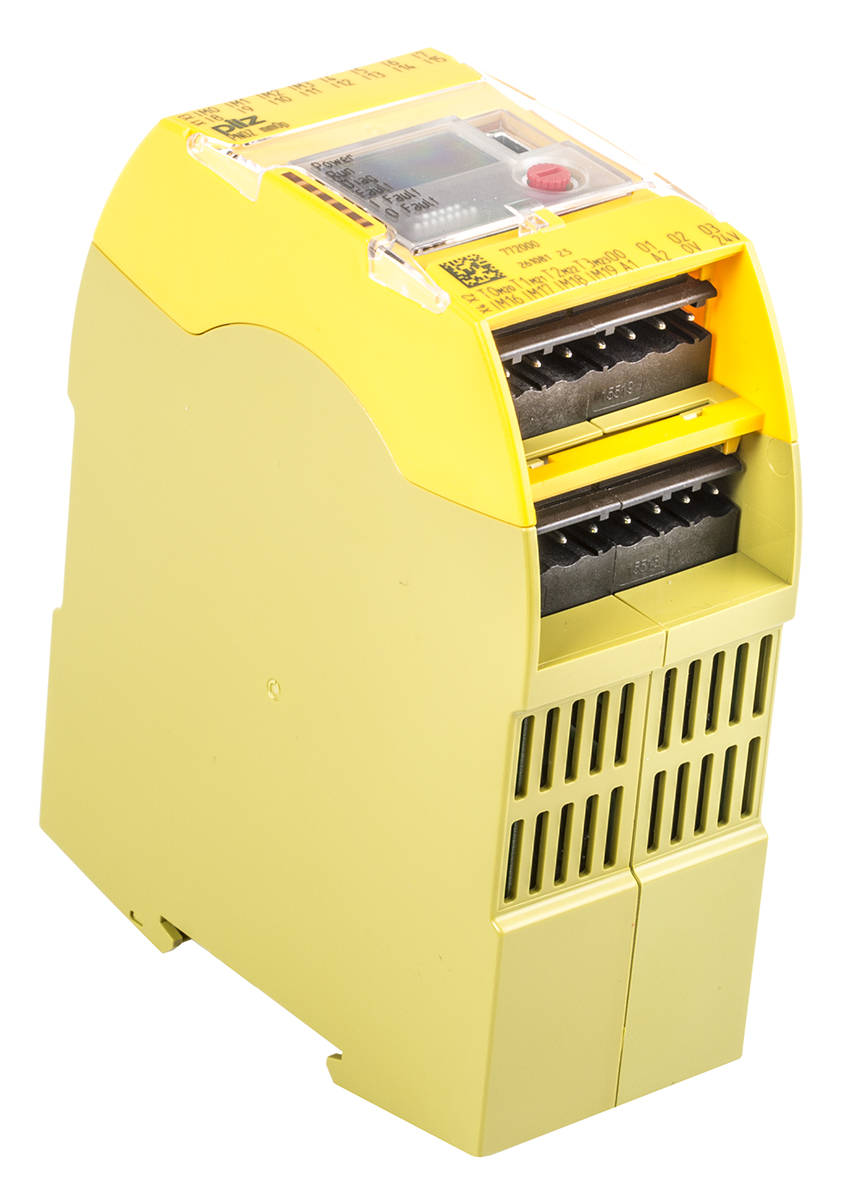

Pilz 772000 PNOZmulti Mini Series Safety Controller, 20 Safety Inputs, 4 Safety Outputs, 24 V dc

Manufacturer:
Manufacturer Part No:
772000
Enrgtech Part No:
ET17495905
Warranty:
Manufacturer
£ 958.07
Checking for live stock
Number of Safety Outputs:
4
Dimensions:
100 x 45 x 120 mm
Safety Category:
4
Contact Current Rating:
2 A
Series:
PNOZmulti Mini
Length:
100mm
Number of Safety Inputs:
20
Width:
45mm
Depth:
120mm
Supply Voltage:
24 V dc
Contact Voltage Rating:
250 V ac
SIL:
SIL 3
pdf icon
Datasheet(Technical Reference)
pdf icon
Operating Manual PNOZ mm0p(Technical Reference)
pdf icon
Product Change Notification(Technical Reference)
pdf icon
Machine Guarding and Safety Range Overview(Technical Reference)
pdf icon
CCC Certificate(Technical Reference)
