PNOZmulti 2 Multi Link Module
The PNOZ m EF Multi Link Module safely connects two PNOZmulti 2 base units.
Features and Benefits
Connects two PNOZmulti 2 base units
Can be configured in the PNOZmulti Configurator
Point-to-point connection via 4-core shielded and twisted-pair cable
32 virtual inputs and 32 virtual outputs
Status indicators
Maximum of 4 PNOZ m EF Multi modules can connect to the base unit
LEDs for operating state, errors and connection status
Standards
EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN 62061 SIL CL 3; IEC 61511 SIL 3.
Approvals
CE, cULus Listed, TÜV, BG, CCC.
Supplied with
Screw terminals.
Safety Controller

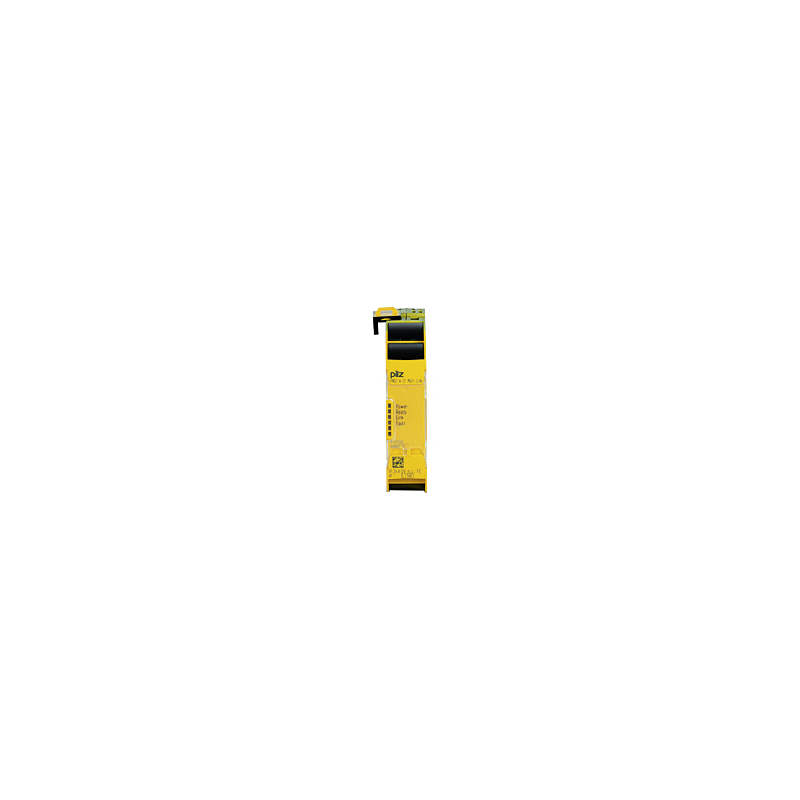

Pilz 772120 PNOZmulti 2 PNOZ m EF Link Module, 24 V dc
£ 282.83
Checking for live stock
For Use With:
Controllers
Series:
772120
Type:
Input/Output Module
Supply Voltage:
24 V dc
