PNOZ m EF 16DI Safe Input Module
The PNOZ m EF 16DI expansion module connects to a base unit from the configurable control system.
Features and Benefits
Can be configured in the PNOZmulti Configurator
16 safe inputs
LED for error messages and diagnostics
Test pulse outputs used to monitor shorts across the inputs
Applications
The PNOZ m EF 16DI can connect E-stops, two-hand buttons, light beams, scanners, enabling switches, safety gate switches, PSEN and operating mode selector switches.
Standards
EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN 62061 SIL CL 3.
Approvals
CE, cULus Listed, TÜV, BG, CCC.
Supplied with
Screw terminals.
Safety Controller

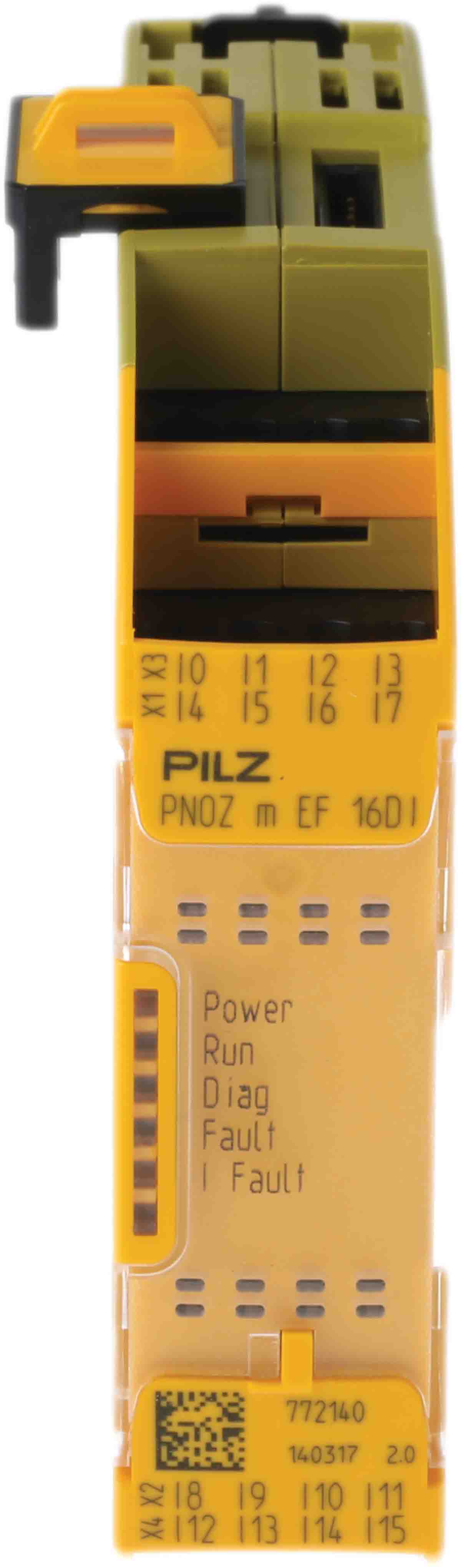

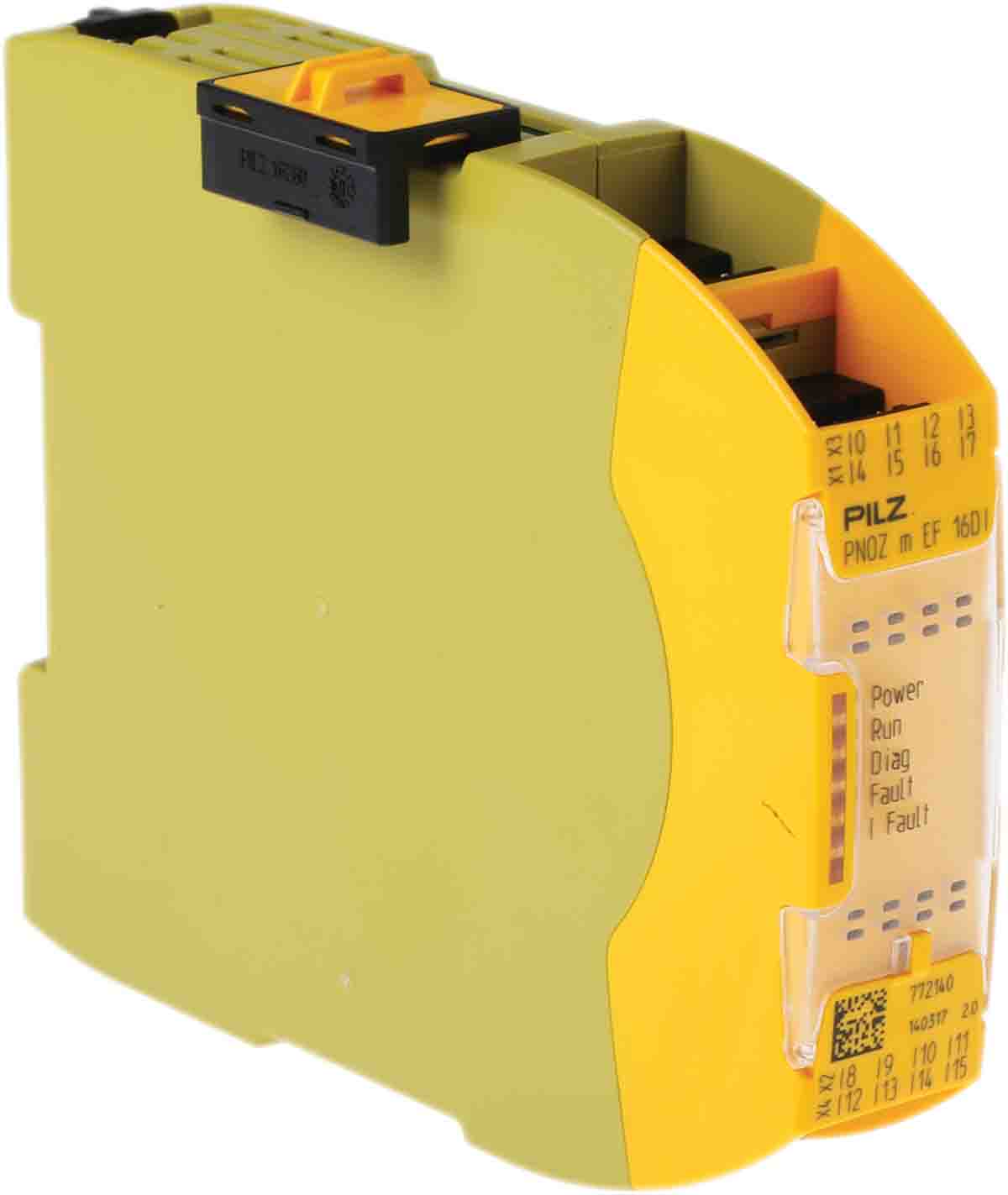

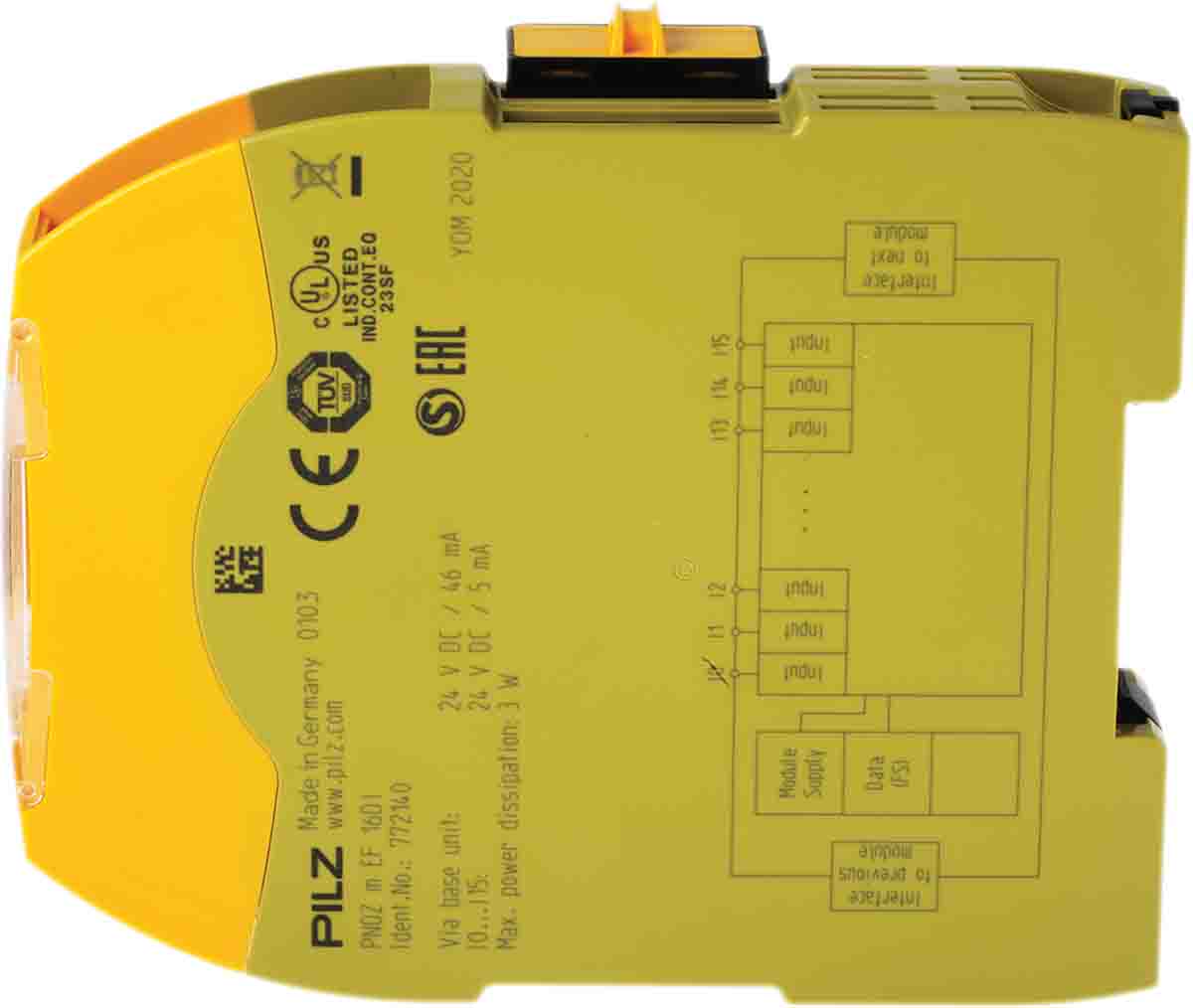

Pilz 772140 PNOZmulti 2 PNOZ m EF Input Module, 16 Inputs, 24 V dc
£ 256.83
Checking for live stock
Dimensions:
101.4 x 22.5 x 120 mm
Series:
PNOZ m EF
Mounting Style:
DIN Rail
Range:
PNOZmulti 2
Supply Voltage:
24 V dc
For Use With:
PNOZmulti 2
Type:
Input Module
Terminal Type:
Screw
Number of Inputs:
16
