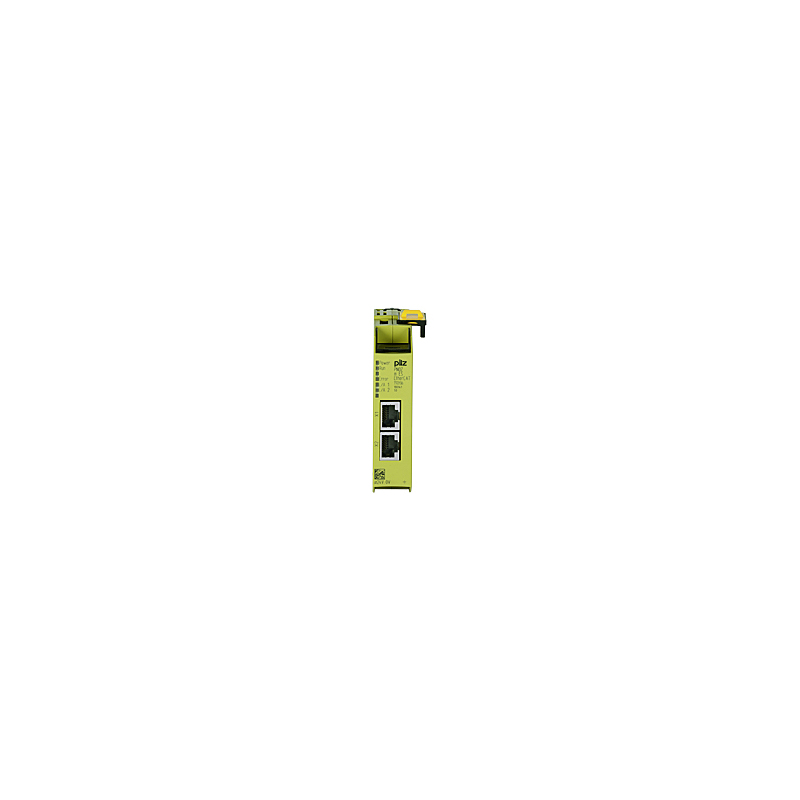

PNOZmulti 2 Communication/Fieldbus Module EtherCAT The PNOZ m ES EtherCAT expansion module connects to a base unit from the PNOZmulti 2 configurable control system. Features and Benefits Can be configured in the PNOZmulti Configurator EtherCAT network protocol Supports CANopen over EtherCAT (DS301 V4.02 compliant) Status indicators for communication with EtherCAT and for errors 128 virtual inputs and outputs on the control system PNOZmulti can be defined in the PNOZmulti Configurator for communication with the fieldbus EtherCAT Maximum 1 PNOZ m ES EtherCAT can be connected to the base unit Transmission rate: 100 Mbps Maximum 148 B TxPDO and 20 B RxPDO Connection to fieldbus via RJ45 connector Approvals CE, cULus Listed, TÜV, BG, CCC. Supplied with Screw terminals. Safety Controller
