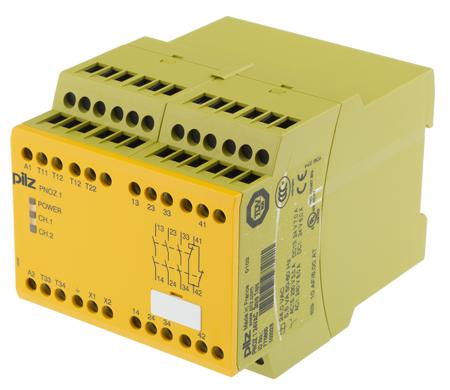

775600 Pilz 24 V ac Safety Relay Dual Channel with 3 Safety Contacts and 1 Auxilary Contact Compatible With Emergency Stop

Self-monitored emergency stop relay Safety relays for emergency stop circuits as per the Machines directives and EN 60204 and EN 292 standards Cabling on 1 or 2 channels Display LEDs on input channels 1 and 2 Fitted with a return loop for self-monitoring of external relays or contactors Input for validation push-button. DIN rail mount Output contacts: 3 N/O + 1 N/C Consumption: 2VA/2W max. Breaking capacity: 8A/2000VA max. Release time: 20 ms Voltage/current in the emergency stop buttons: 24 Vdc/50mA Operating temperature: –10°C to +55°C Supply voltage 24Vac Stock release no. voltage 178-2438 24 Vac Approvals BG EML II, TÜV, SUVA, SA INRS and CSA tested

For more information please check the datasheets.

Pilz 24 V ac Safety Relay Dual Channel with 3 Safety Contacts and 1 Auxilary Contact Compatible With Emergency Stop

Name: Pilz 24 V ac Safety Relay Dual Channel with 3 Safety Contacts and 1 Auxilary Contact Compatible With Emergency Stop
Brand: Pilz
SKU: ET16990366
Availability: InStock

Manufacturer:

Pilz

Manufacturer Part No:

775600

Enrgtech Part No:

ET16990366

Warranty:

Manufacturer

£ 353.78

Checking for live stock

Function:

Emergency Stop

SIL IEC 61508:

Reset Method:

Automatic & Manual

Safety Category ISO 13849-1:

PL ISO 13849-1:

Performance Level:

Series:

PNOZ 1

Length:

87mm

Width:

90mm

Depth:

121mm

Number of Channels:

Supply Voltage:

24V ac

Not-Aus-Schaltgerät PNOZ1 - Bedienungsanleitung(Technical Reference)

PNOZ Safety Relays Catalogue(Technical Reference)

Machine Guarding and Safety Range Overview(Technical Reference)

CCC Certificate(Technical Reference)
