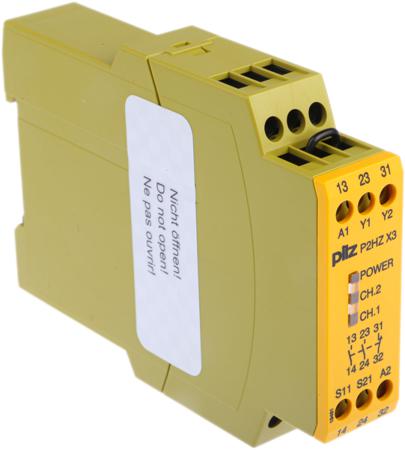

PILZ P2HZ X3 Safety Relay The PILZ P2HZ X3 range is an affordable, durable and reliable safety relay designed with two handed control units in mind. Useful when you need to control your press controllers and safety circuits. Features and benefits • Specially designed for two handed control/operation. The P2HZ series will not function unless the operator has their hands outside the danger zone area during hazardous movement. • LED indicator for switching your channel status from 1 to 2 and also to monitor your supply voltage • Single or Dual channel input operation (Single channel are used more beneficially with smaller type machines where you need to use a dedicated logic device that only has a small function to cut off in an emergency – Dual allows you to take control of more safety circuits and control a greater amount of control zones at any given time) • Suitable for DIN rail mounting • Durable and has an extended service life vs. competitors • Positive guided relay outputs (2 safety contacts, 1 auxiliary) Safety features • The relay will provide the circuit self-monitoring. • The safety functions of the device remain in effect even in the case of component failures. • The relay will prevent the circuit from further press strokes in the case of, relay failures, contact welding, coil defects or open/short circuits. Applications • Mechanical presses • Hydraulic presses • General safety circuits (in accordance with EN 60204-1) Technical safety parameters • EN 60204-1 • EN 954-1 • EN (IEC) 62061 • EN ISO 13849-1 • IEC 61511 – SIL 3 Tolerance 85-110% supply Power consumption 2.5W Voltage/current at the input circuits 1//2 24Vdc/20mA Switching capability in accordance with EN60947-4-1 and EN60947-5-1 ac 15: 230V/2.5a dc 13: 24V/1.5A Delay on de-energising approx 15ms Simultaniety 1//2 Contact fuse protection 6A quick...
