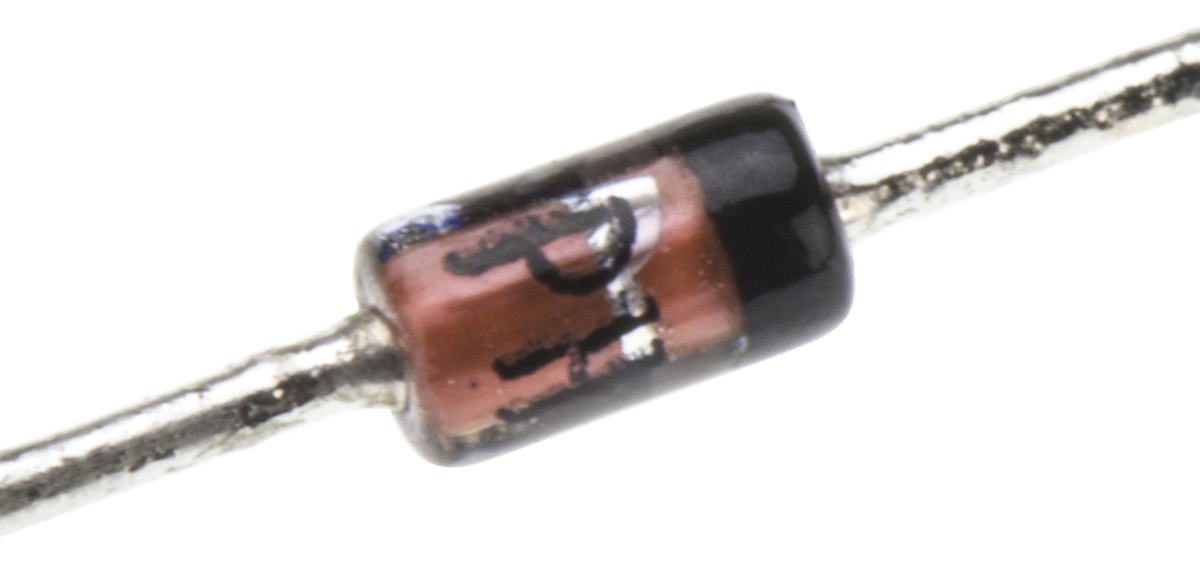

bat85113 Nexperia 30 V 200 mA Diode Schottky 2-Pin DO-34 BAT85,113
bat85113 Nexperia 30 V 200 mA Diode Schottky 2-Pin DO-34 BAT85,113
bat85113 Nexperia 30 V 200 mA Diode Schottky 2-Pin DO-34 BAT85,113

Nexperia 30 V 200 mA Diode Schottky 2-Pin DO-34 BAT85,113

Nexperia 30 V 200 mA Diode Schottky 2-Pin DO-34 BAT85,113

Manufacturer:
Nexperia
Manufacturer Part No:
BAT85,113
Enrgtech Part No:
ET13811804
Warranty:
Manufacturer
Pre-order

Estimated Delivery Time: 7-13 weeks

Each

Quantity
Unit Price (ex VAT)
5
£ 0.27
25
£ 0.25
50
£ 0.24
Order Today!
From: United Kingdom

Estimated Delivery Time: 7-13 weeks

Width:
1.6 mm
Height:
1.6mm
Length:
3.04mm
Series:
BAT85
Diameter:
1.6 mm
Pin Count:
2
Mount Type:
Through Hole
Package Type:
DO-34
Product Type:
Diode
Rectifier Type:
Schottky
Automotive Standard:
No
Diode Configuration:
Single
Standards/Approvals:
No
Peak Reverse Current Ir:
2μA
Maximum Forward Voltage Vf:
1.27 mm, 2.54mm
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-65°C
Peak Reverse Recovery Time trr:
4ns
Peak Reverse Repetitive Voltage Vrrm:
30V
Maximum Continuous Forward Current If:
200mA
Peak Non-Repetitive Forward Surge Current Ifsm:
5A
