The TE Connectivity 2 way, 68 pin, 1.27mm pitch, black plug connector kit without rails has steel shell material and is compatible with round jacketed cable.
Phosphor bronze contact base material
Thermoplastic housing material
Temperature ranges between -55°C to 105°C
Not sealable
Gold contact mating area plating material
Solid wire size: 0.05mm² -0.1 mm²
Cable to board, cable to cable connector system
Connector & contact terminates to : Wire & cable
1A max. contact current rating
Thermoplastic housing material
Temperature ranges between -55°C to 105°C
Not sealable
Gold contact mating area plating material
Solid wire size: 0.05mm² -0.1 mm²
Cable to board, cable to cable connector system
Connector & contact terminates to : Wire & cable
1A max. contact current rating

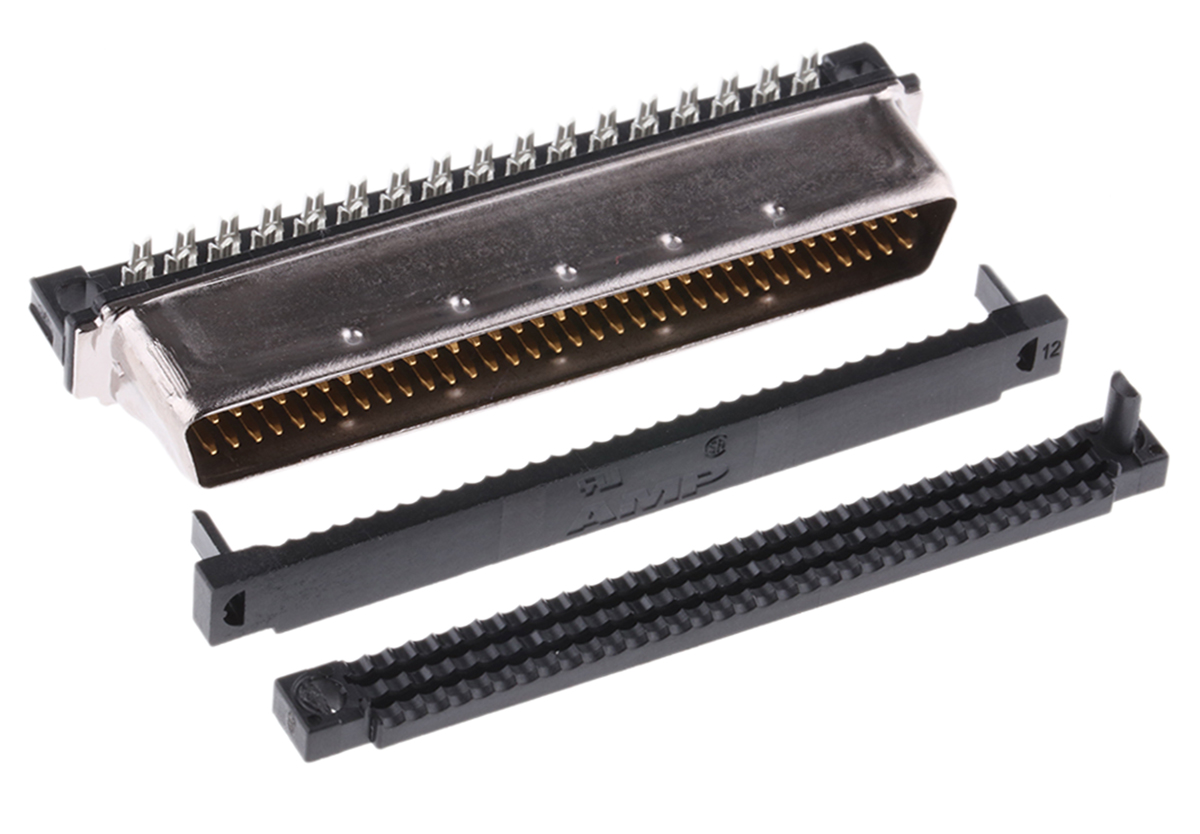

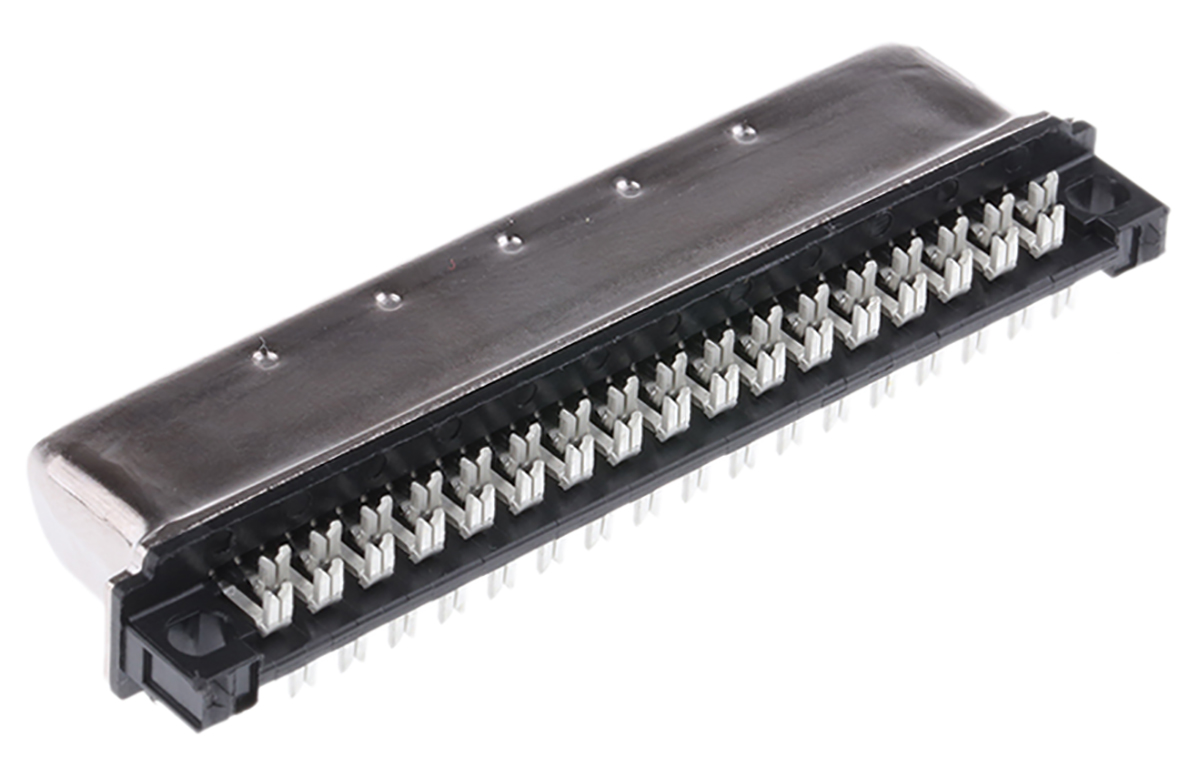

Male 68 Pin Right Angle Cable Mount SCSI Connector 1.27mm Pitch, IDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
5749621-7
Enrgtech Part No:
ET14026120
Warranty:
Manufacturer
£ 19.87
Checking for live stock
Gender:
Male
Number of Contacts:
68
Body Orientation:
Right Angle
Mounting Type:
Cable Mount
Contact Material:
Phosphor Bronze
Contact Plating:
Gold over Nickel
Housing Material:
Thermoplastic
Pitch:
1.27mm
Termination Method:
IDT
Length:
51.54mm
Width:
14.94mm
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=452151&DisplayLogo=False
