M12 Front Mounted, 200mm Wire
Brought to you from TE Connectivity, these M12 front mounting connectors are conveniently designed to be used with various applications. With A, B and D codes all available, you are sure to find a perfect fit for your application. The sleek design of these plugs and sockets, including the added 0.2 m cable and coupled with the IP67 rating ensures excellent durability within harsh environments. All models are highly reliable and excellent quality.
Features & Benefits
Codes, A, B and D
Both Male and Female version available
Shielded
Cable type: PVC

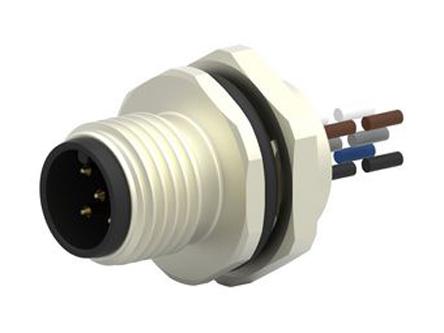

Straight Male 5 way M12 to Unterminated Sensor Actuator Cable, 200mm
Manufacturer:
TE Connectivity
Manufacturer Part No:
T4171210005-001
Enrgtech Part No:
ET16721021
Warranty:
Manufacturer
£ 7.69
Checking for live stock
Series:
T417
Number of Cores:
5
Cross Sectional Area:
0.34 mm²
Length:
200mm
Sheath Material:
PVC
Connector 1 Gender:
Male
Connector 1:
M12
Connector 1 Orientation:
Straight
Connector 1 Number of Contacts:
5
Connector 2:
Unterminated
Coding:
A
Mounting Type:
Panel Mount
