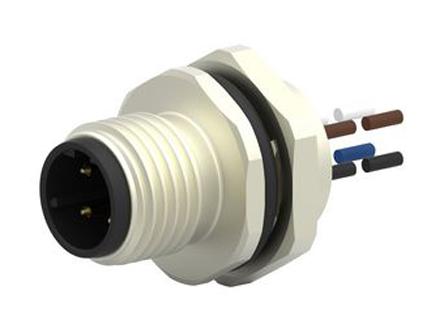

Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 200mm

Series:

T417

Cross Sectional Area:

0.34 mm²

Number of Cores:

4

Length:

200mm

Sheath Material:

PVC

Connector 1:

M12

Connector 1 Orientation:

Straight

Connector 1 Gender:

Male

Connector 1 Number of Contacts:

4

Connector 2:

Unterminated

Coding:

D

Mounting Type:

Panel Mount

Shielded/Unshielded:

Unshielded

Current Rating:

4 A

Voltage Rating:

250 V ac/dc

IP Rating:

IP67

Conductor Material:

Copper

Fire Behaviour:

Self-extinguishing

Minimum Operating Temperature:

-40°C

Operating Temperature Range:

-40 → +85 °C

Insulation Material:

PVC

Maximum Operating Temperature:

+85°C

Conductor Resistance:

<lteq/>10 m<ohm/>

American Wire Gauge:

22 AWG

Standards Met:

IEC 61076-2-101, UL, UL 94 V-0

Connector 1 Housing Gender:

Male

Cable Shape:

Multicore
