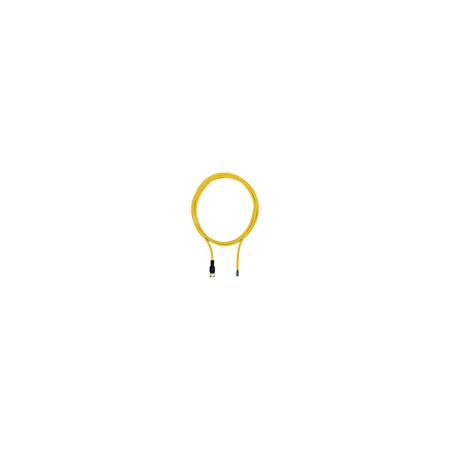

The Pilz Connection Cable is made of PUR with a yellow colour, featuring a 5-pin straight M12 socket on one end and an open line end on the other. It is A-coded for proper electrical connection. The cable operates within an ambient temperature range of -25°C to 80°C and has a pollution degree of 3, meeting the required clearance and creepage distance standards for reliable and safe performance in industrial applications.
CE and UKCA approved
Au contact surface material
CuSn socket material
Oil resistant
RoHS compliant
Straight Female 5 way M12 to Unterminated Cable, 5m
£ 32.88
Checking for live stock
Sheath Material:
Polyurethane PUR
Connector 1 Number of Contacts:
5
Series:
630311
Connector 1 Gender:
Female
Sheath Colour:
Yellow
Length:
5m
Cross Sectional Area:
0.25 mm²
Connector 1 Orientation:
Straight
Connector 2:
Unterminated
Number of Cores:
5
Connector 1:
M12
