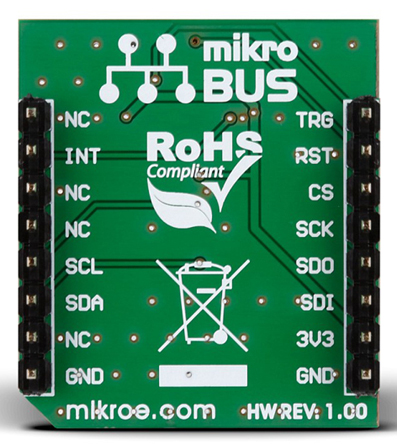

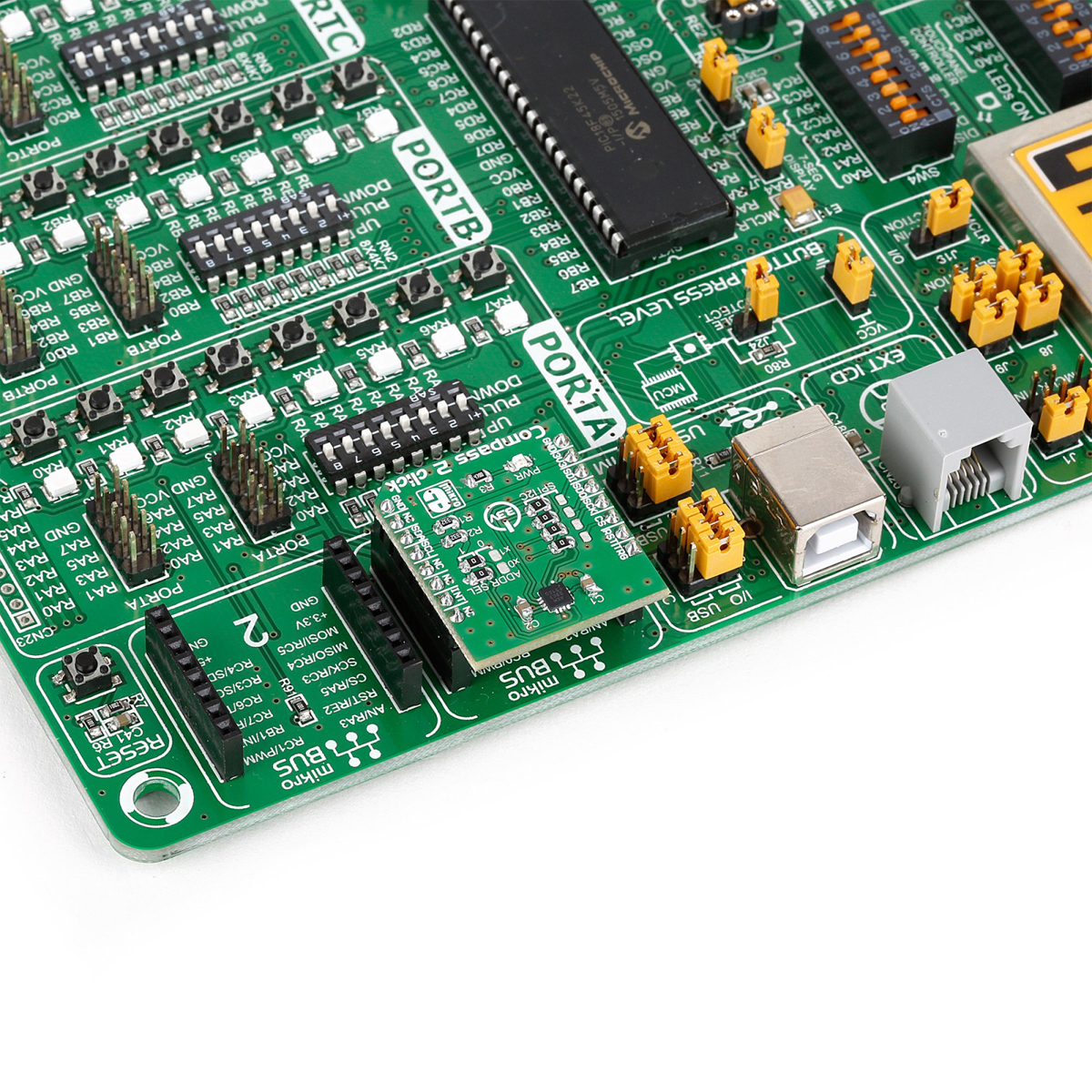

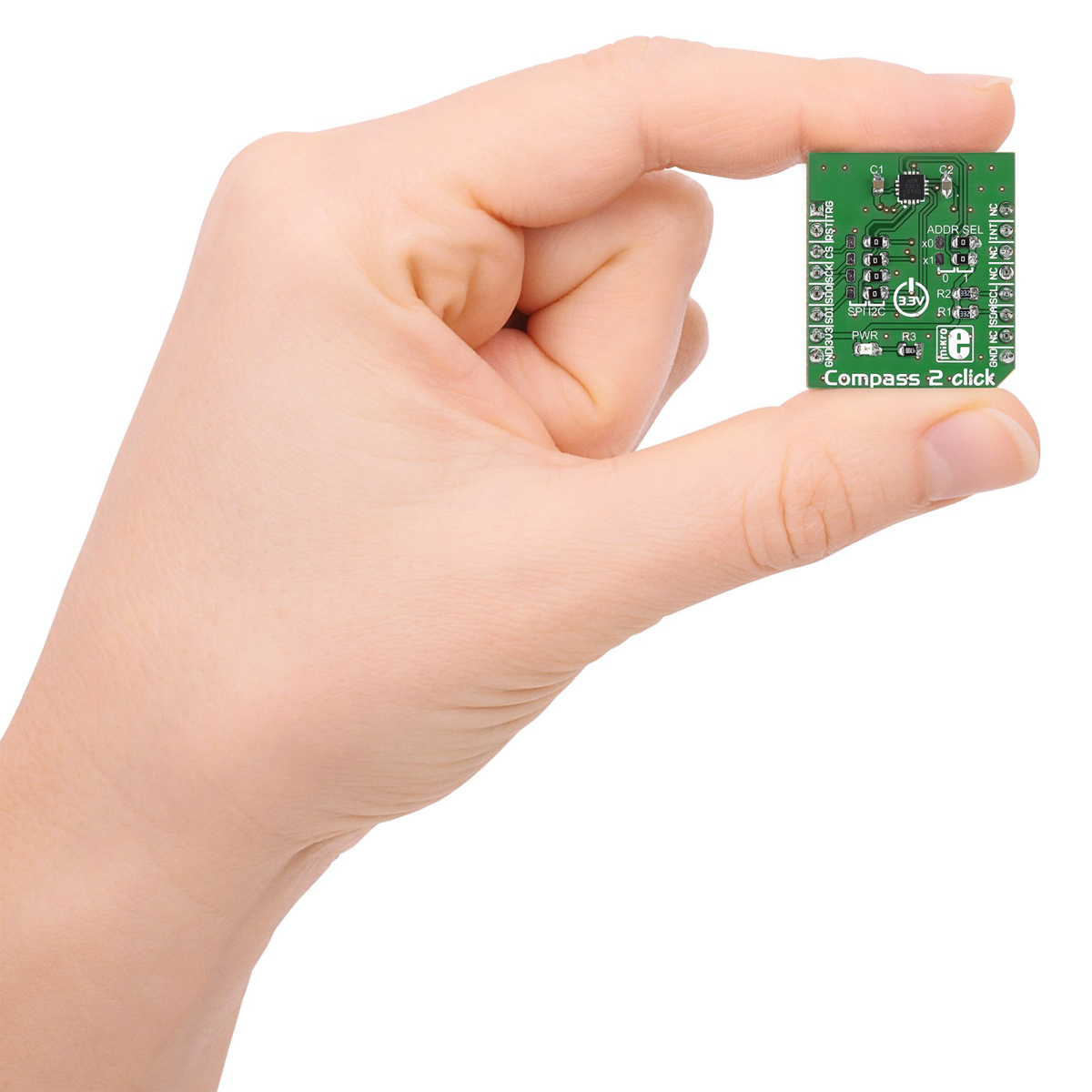

Compass 2 Click mikroBUS™ A Click accessory module for use with MikroElektronika mikroBUS™ microcontroller development boards. The Compass 2 click board is equipped with an AK8963 3-axis electronic compass IC. The AK8963 sensor utilises Hall effect technology to provide 16-bit output data for all three axes. The device includes an arithmetic unit to process the measured signals. The click board communicates with the target microcontroller through either I2C or SPI interface, with additional functionality provided by the INT pin on the mikroBUS™ line. The board requires a 3.3V power supply. • Measurement range: ±4900 μT
• Selectable resolution: 14-bit or 16-bt
• Sensitivity: 0.6μT/bit (14-bit) or 0.15μT/bit (16-bit)
