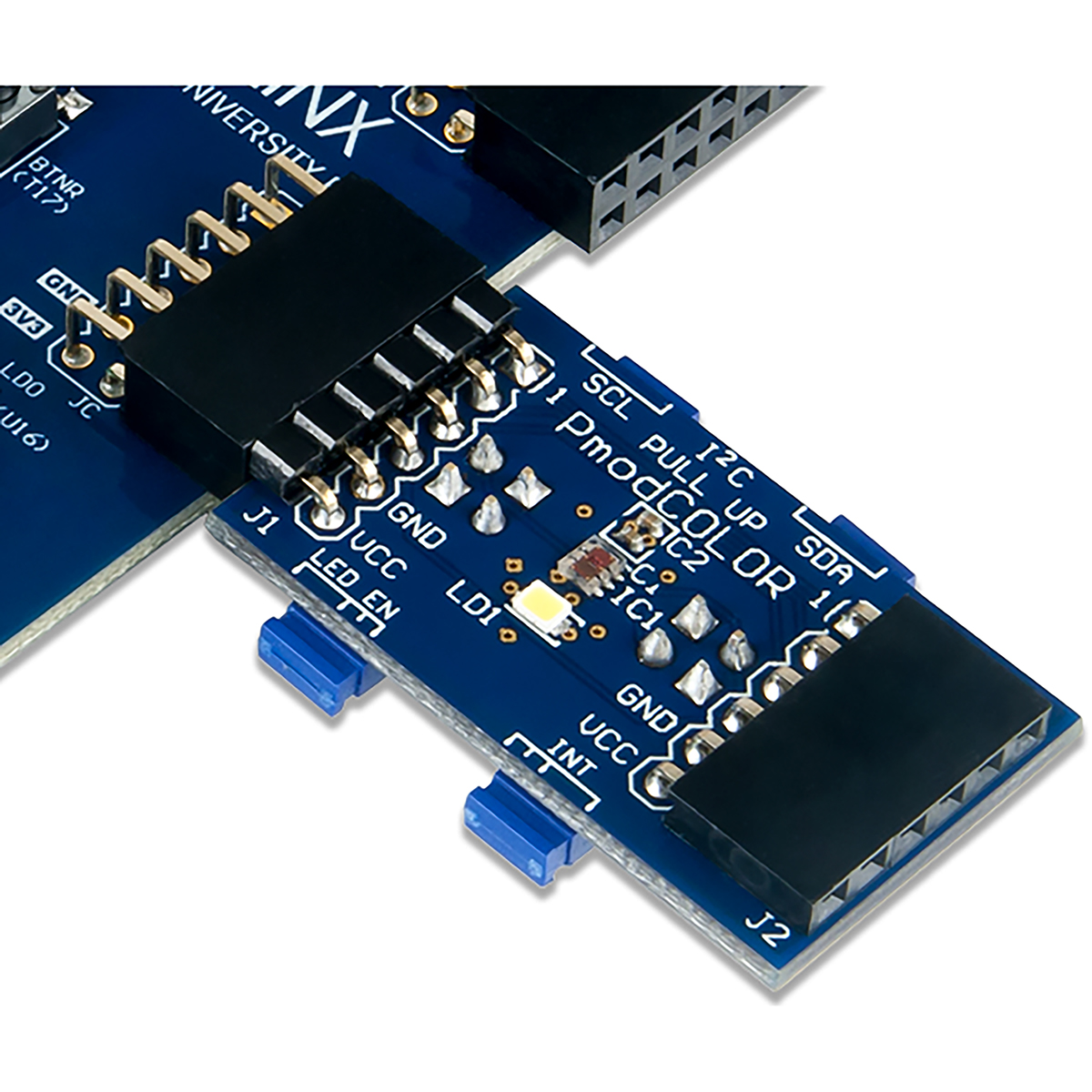

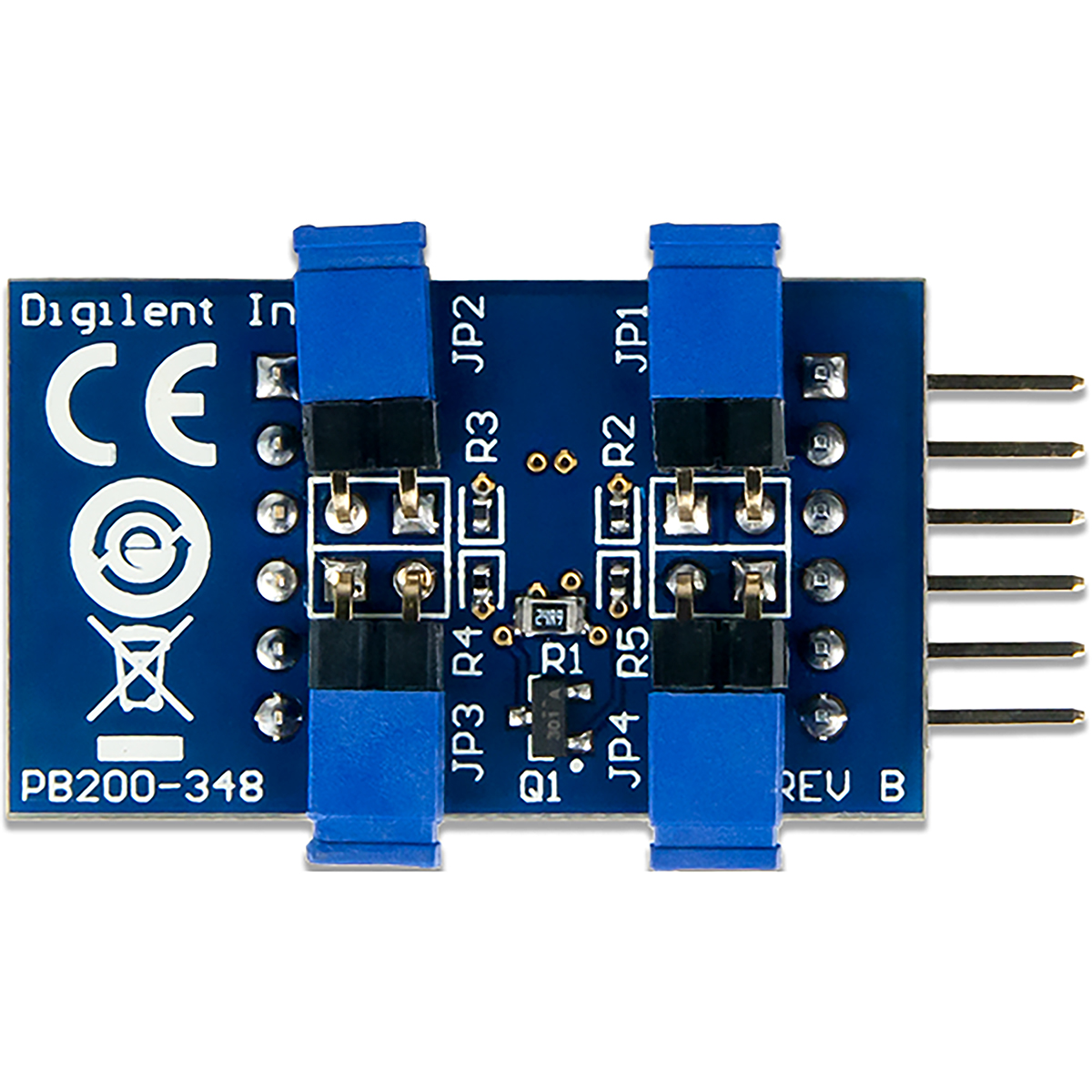

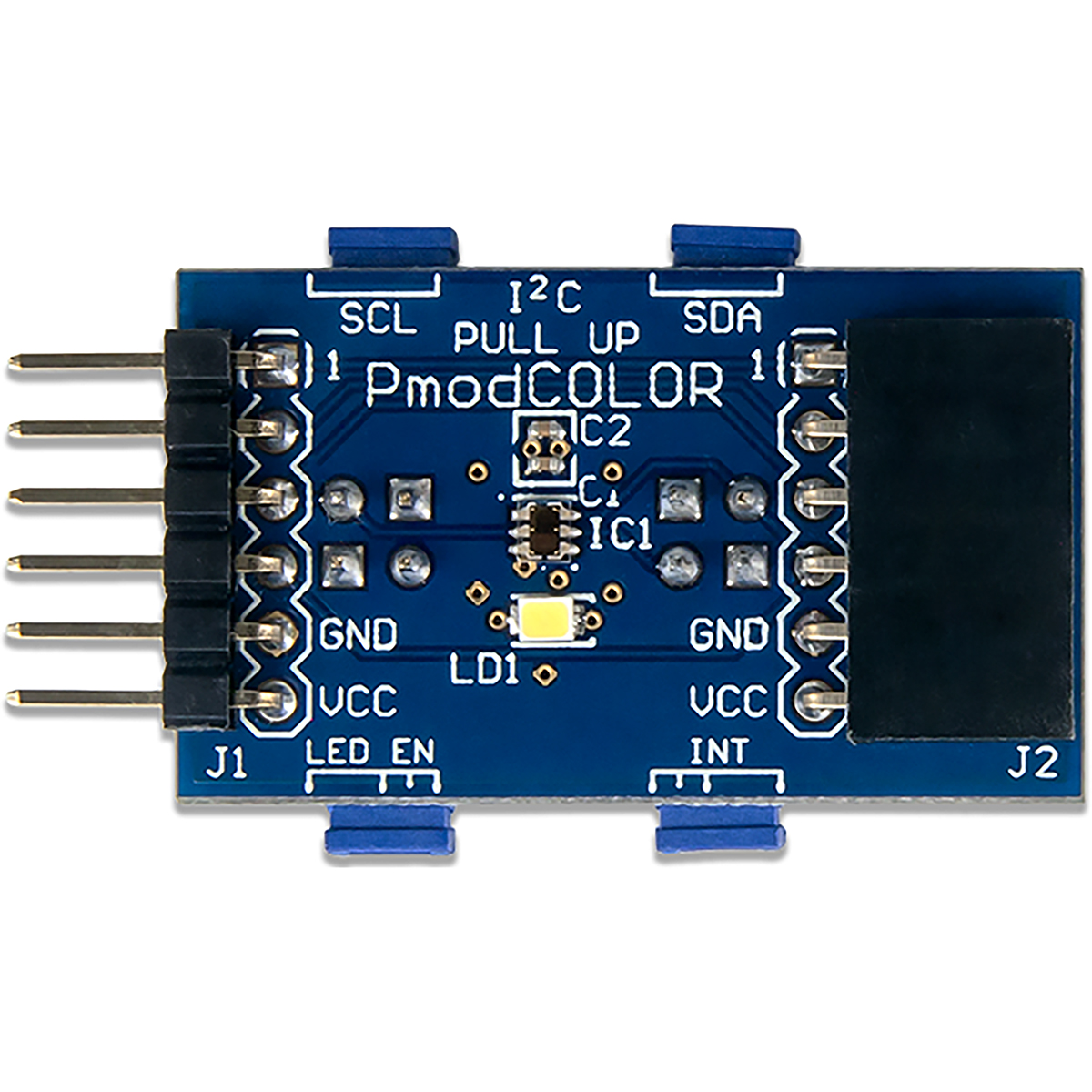

Digilent Colour Sensor Module The Digilent Pmod colour sensor module can sense red, green, blue and clear light. The on-board AMS's TCS3472 integrates an IR blocking filter to accurately determine the colour of objects as well as sense ambient light under varying lighting conditions and through attenuating materials. It also has an IR-blocking feature and user-controlled white LED to help illuminate the colour of objects. Features and Benefits: • 6-pin Pmod connector with an I²C interface
• Follows Digilent Pmod™ interface specification type 6
• IR blocking filter
• Pass-through Pmod host port for daisy chaining
• Small PCB size for flexible designs 0.8inx1.35in (2.03cmx3.43cm)
• Suitable for use behind darkened glass
• White LED for reflective measurements Applications: • Embedded systems
• Industrial process control
• Light colour temperature measurement
• RGB LED consistency control Certifications: • ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
