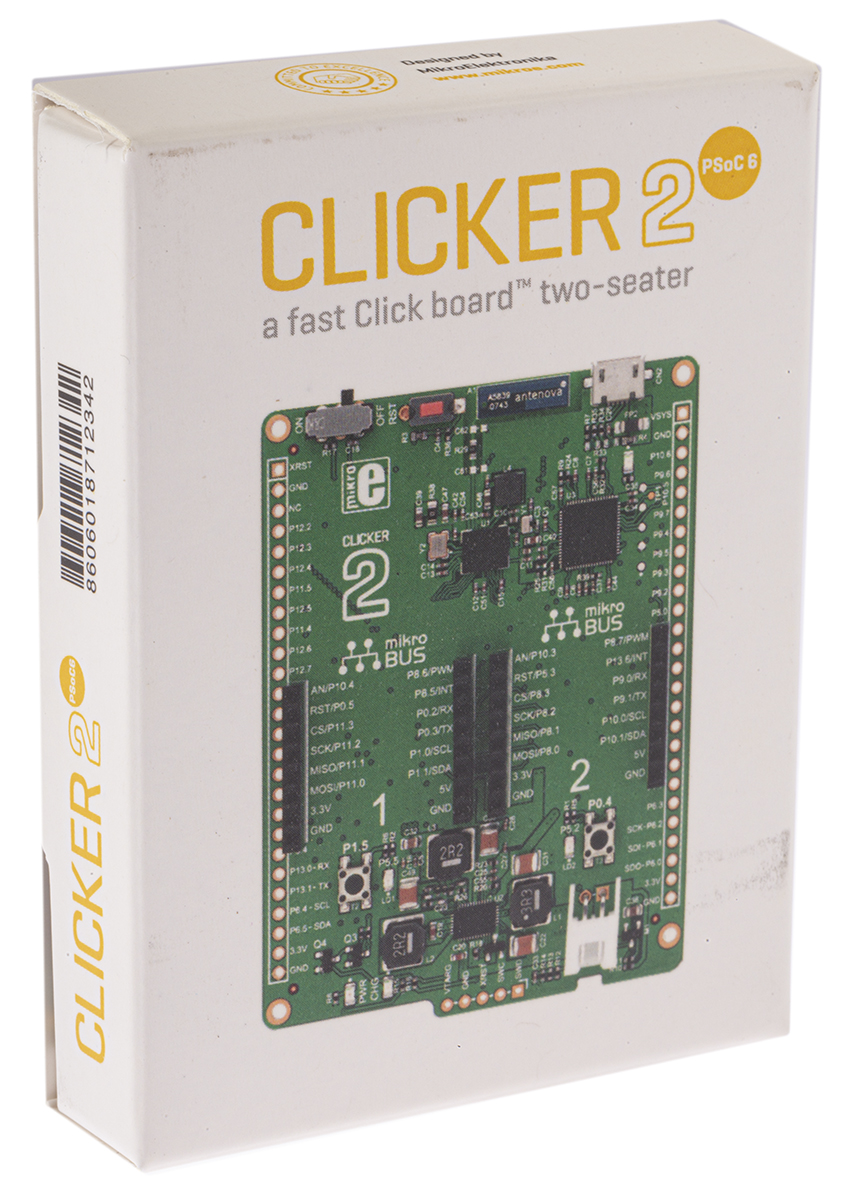

MikroElektronika MCU Development Board The MikroElektronika MCU is a compact board designed for fast development on custom designs. This development board is based on the CY8C6347BZI-BLD53 microcontroller (MCU). This device belongs to the family of Arm Cortex based, dual-core, 32-bit MCUs. It can be either battery-powered or via USB. It works with a 3.7V Li-Po battery or a 5V USB cable via the mini-B USB port onboard. It uses a PSoC Creator IDE or standalone PSoC programmer software application for programming. This board has an exciting and flexible functionality that is ideal for designing portable devices. Features and Benefits: • Antenna: Bluetooth 2.4GHz
• Audio: Audio subsystem, including two PDM channels and I2S interface
• Bluetooth: BLE (Bluetooth Smart) BT 5.0 subsystem, including programmable output power energy Profiler block
• Capacitive touch: CapSense technology
• GPIO: 78 x pins with configuration options
• MCU speed: 150MHz (M4 core) and 100MHz (M0 core)
• Memory: 1MB application flash with 32kb EEPROM area and 32kb secure flash
• Memory: 1MB application flash, 32kb secure flash, 32kb EEPROM
• Oscillator: 32MHz crystal
• PLBs: 12 x programmable logic blocks with 8 x Macrocells and an 8-bit data path (UDBs)
• Programmer: KitProg2 PSoC programmer
• SCB: 9 x serial communication blocks (configurable as I2C, SPI or UART)
• USB: 1 x Mini-B USB port (for power) Applications: • Electronics laboratories
• Embedded systems
• IoT systems Certifications: • ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
