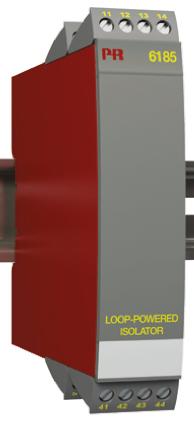

PR Electronics 6185 Loop-powered Isolator PR Electronics 6185 series are loop powered isolators provide galvanic separation of analogue current signals. Designed to give a simple and efficient solution in applications with unproblematic transmission of current signals according to NAMUR. The 6185 isolator is powered by the measured signal and loads the loop with a maximum 1.8 Vdc. Mounted vertically or horizontally on a DIN rail. As the devices can be mounted without distance between neighbouring units, up to 168 channels can be mounted per meter. Features and Benefits • Slimline channel width of less than 6 mm
• Loop-powered isolator
• No separate supply necessary
• Low response time
• High noise suppression
• Inputs and outputs are floating and galvanically separated
• Input is protected against overvoltage and polarity error
• DIN Rail mounting
• 1-channel version, stock-no. 796-6991
• 2-channel version, stock-no. 796-6916
• 4-channel version, stock-no. 796-6948
