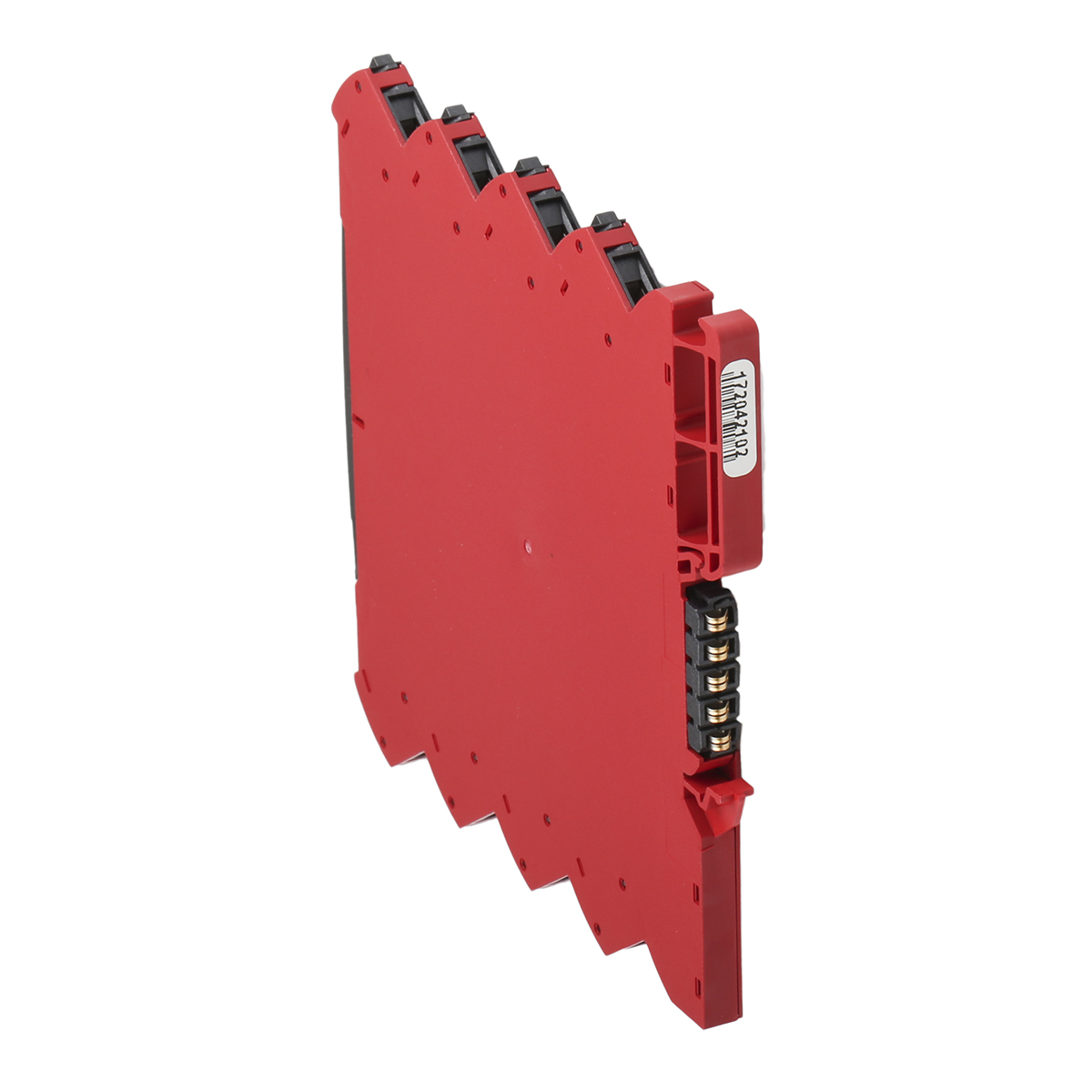

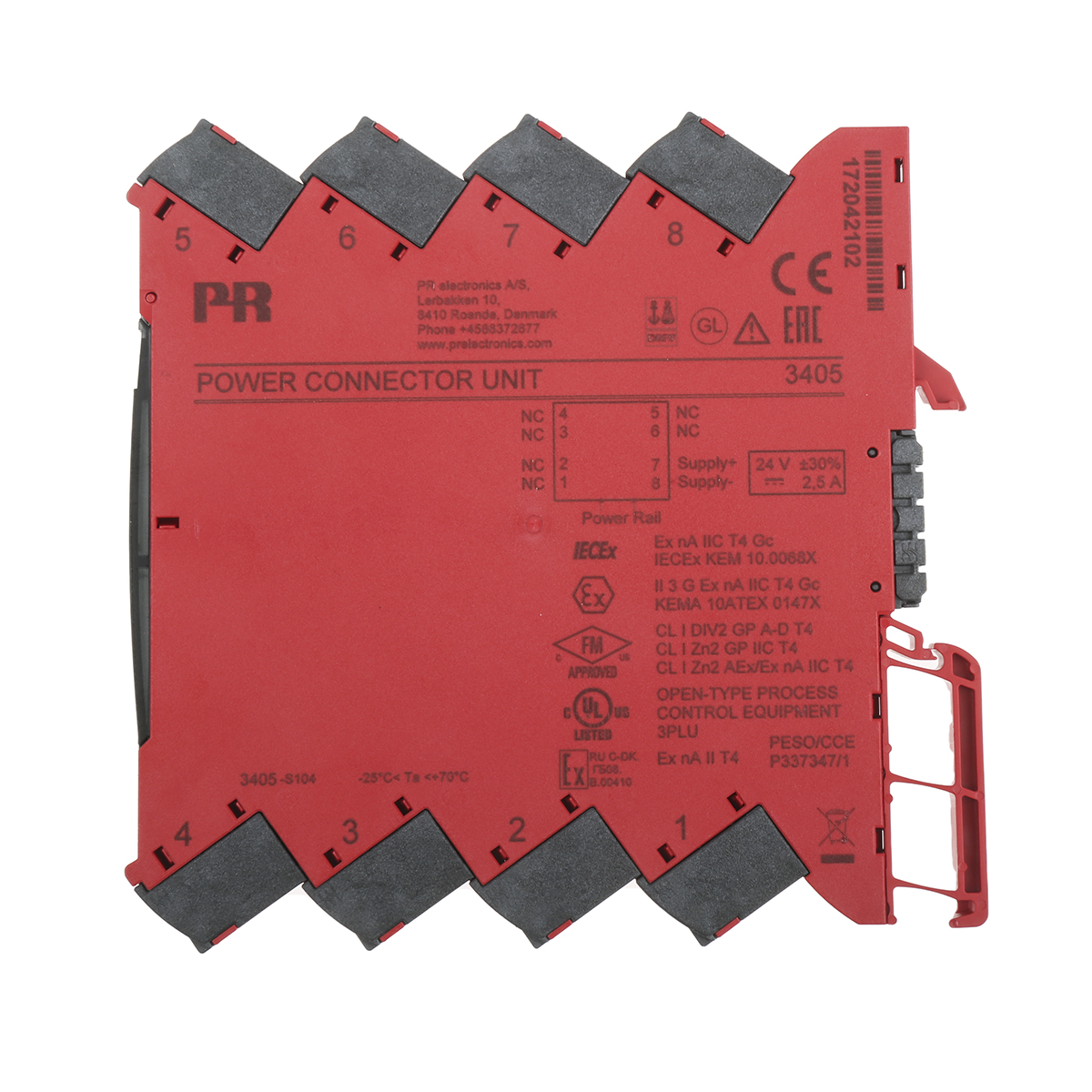

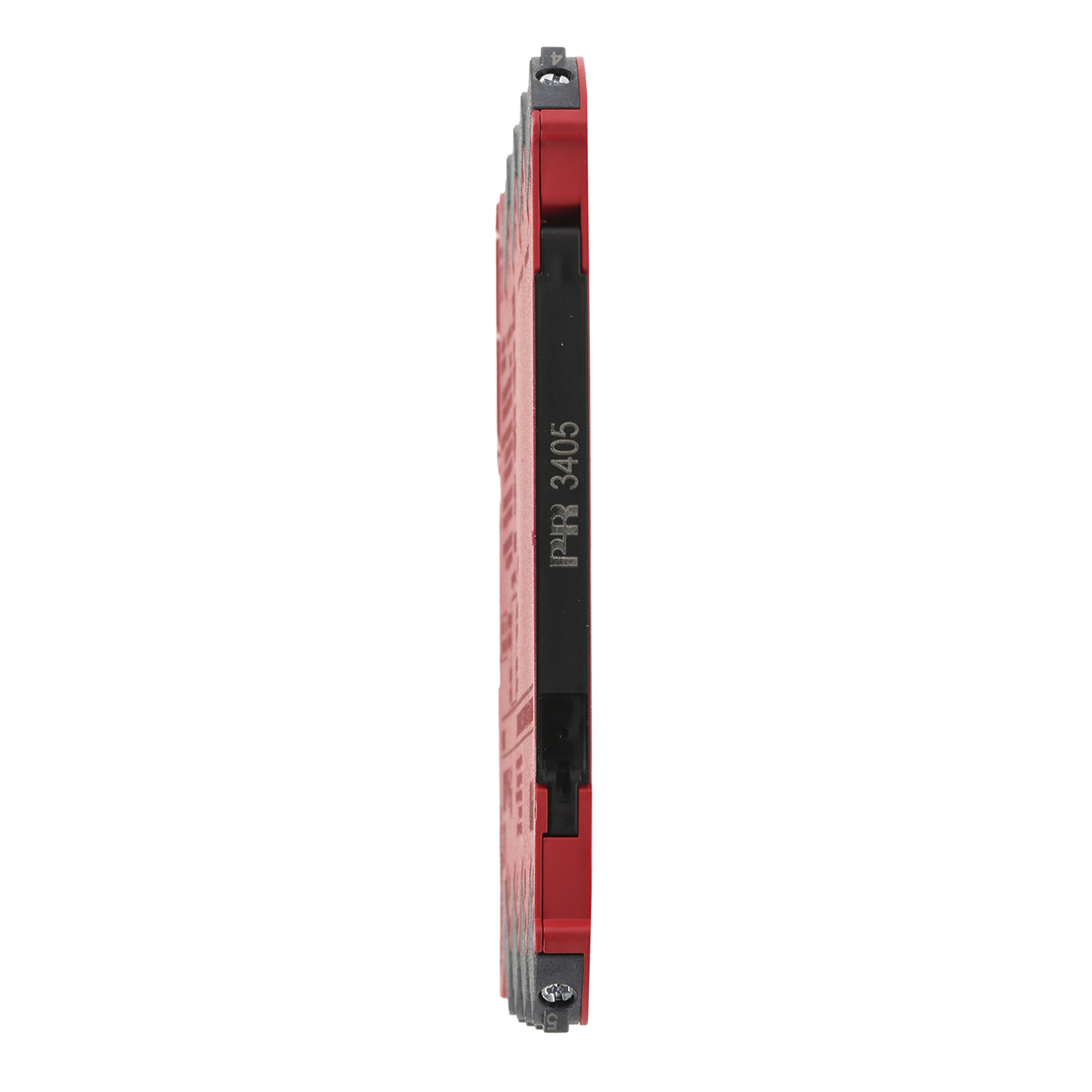

3405 Type - Power Connector Unit PR Electronics 3405 power connecting unit supplies DC power to a powered DIN Rail that can supply up to 100 units in the 3000 series of temperature converters and signal conditioners. The 3405 power connector has terminals on the rear of the device that connect directly to 9400 series power rail (RS stock number 827-5381). This allows a 24 Vdc supply up to 2.5A to power other units connected to the DIN rail. Features and Benefits • Power can be connected to the DIN rail from supply terminals
• Installation in ATEX Ex zone 2 / IECEx zone 2 / FM division 2
• Suitable for environments with high vibration stress, e.g. ships
• Slimline housing of 6 mm
• Can pass up to 2.5 A
• Up to 100 units can be powered
