TE Connectivity PCB Mount Signal Relay - IM Series
IM series slimline PCB mount signal relays with a low profile of 5.65mm that occupy a minimum board space of 60mm². These slimline IM series PCB mount signal relays have a low coil power consumption of 140mW for standard coil, 100mW for bistable and 50mW for the ultra high sensitive versions, along with a high dielectric surge capability and 300g mechanical shock resistance.
Features and Benefits:
• Slimline and low profile - 10x6x5.65 mm
• Bifurcated contacts, gold plated
• Hermetically sealed (RT V), IP67
• High mechanical shock resistance up to 300G functional, 500G survival
• Insulation resistance at 500V dc >10⁹Ω
• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45.
• 1500V between open contacts and 2500V between coil and contacts Applications: • Telecommunication equipment
• Optical network terminals
• Office equipment
• Test and measurement equipment
• Medical equipment
• Automotive applications
• Bifurcated contacts, gold plated
• Hermetically sealed (RT V), IP67
• High mechanical shock resistance up to 300G functional, 500G survival
• Insulation resistance at 500V dc >10⁹Ω
• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45.
• 1500V between open contacts and 2500V between coil and contacts Applications: • Telecommunication equipment
• Optical network terminals
• Office equipment
• Test and measurement equipment
• Medical equipment
• Automotive applications

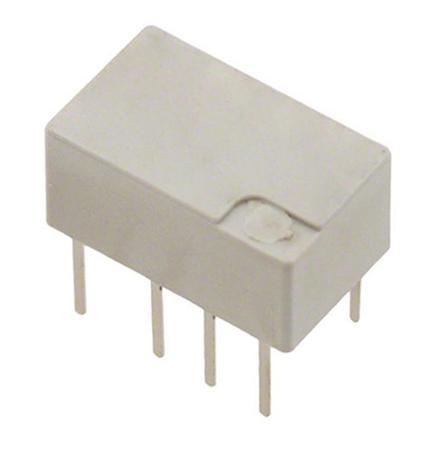

PCB Mount Signal Relay, 3V dc Coil, 2A Switching Current, DPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
1462037-4
Enrgtech Part No:
ET16961607
Warranty:
Manufacturer
£ 2.38
Checking for live stock
Coil Voltage:
3V dc
Contact Configuration:
DPDT
Mounting Type:
PCB Mount
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V ac
Maximum Switching Voltage DC:
220V dc
Series:
IM
Maximum Switching Power DC:
60 W
Length:
10mm
Latching:
No
Depth:
6mm
Height:
5.2mm
