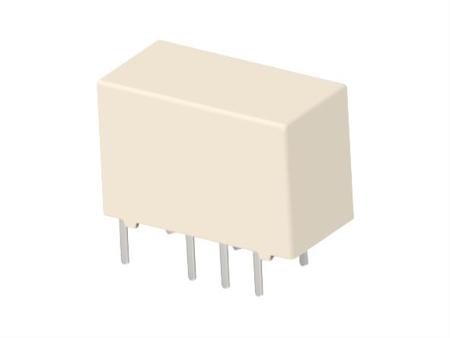

PCB Mount Signal Relay, 24V ac Coil, 2A Switching Current, DPDT

Coil Voltage:

24V ac

Contact Configuration:

DPDT

Mounting Type:

PCB Mount

Number of Coils:

Single

Maximum Switching Current DC:

2 A

Maximum Switching Voltage AC:

250V ac

Maximum Switching Voltage DC:

220V dc

Series:

Axicom P2 Signal Relay

Length:

14.5mm

Latching:

No

Depth:

7.2mm

Height:

9.8mm

Dimensions:

14.5 x 7.2 9.8mm

Terminal Type:

Through Hole

Number of Poles:

2

Switching Current:

2A

Features:

Bifurcated/Twin Contacts

Operating Temperature Range:

-40 → 85°C

Coil Resistance:

578 Ω

Contact Material:

AgNi+AU

Coil Power:

602mW

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+85°C
