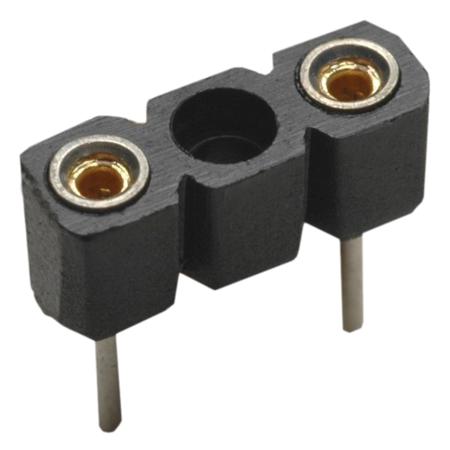

2 Way Vertical Through Hole 5.08mm SIL Socket, Solder, 1.5A

Number of Contacts:

2

Contact Material:

Beryllium Copper

Contact Plating:

Gold over Nickel

Pitch:

5.08mm

Orientation:

Vertical

Termination Method:

Solder

Mounting Type:

Through Hole

Housing Material:

PCT

Current Rating:

1.5A

Dimensions:

7.62 x 2.64 x 3mm

Depth:

3mm

Length:

7.62mm

Maximum Operating Temperature:

+125°C

Minimum Operating Temperature:

-55°C

Width:

2.64mm

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=60414&DisplayLogo=False
