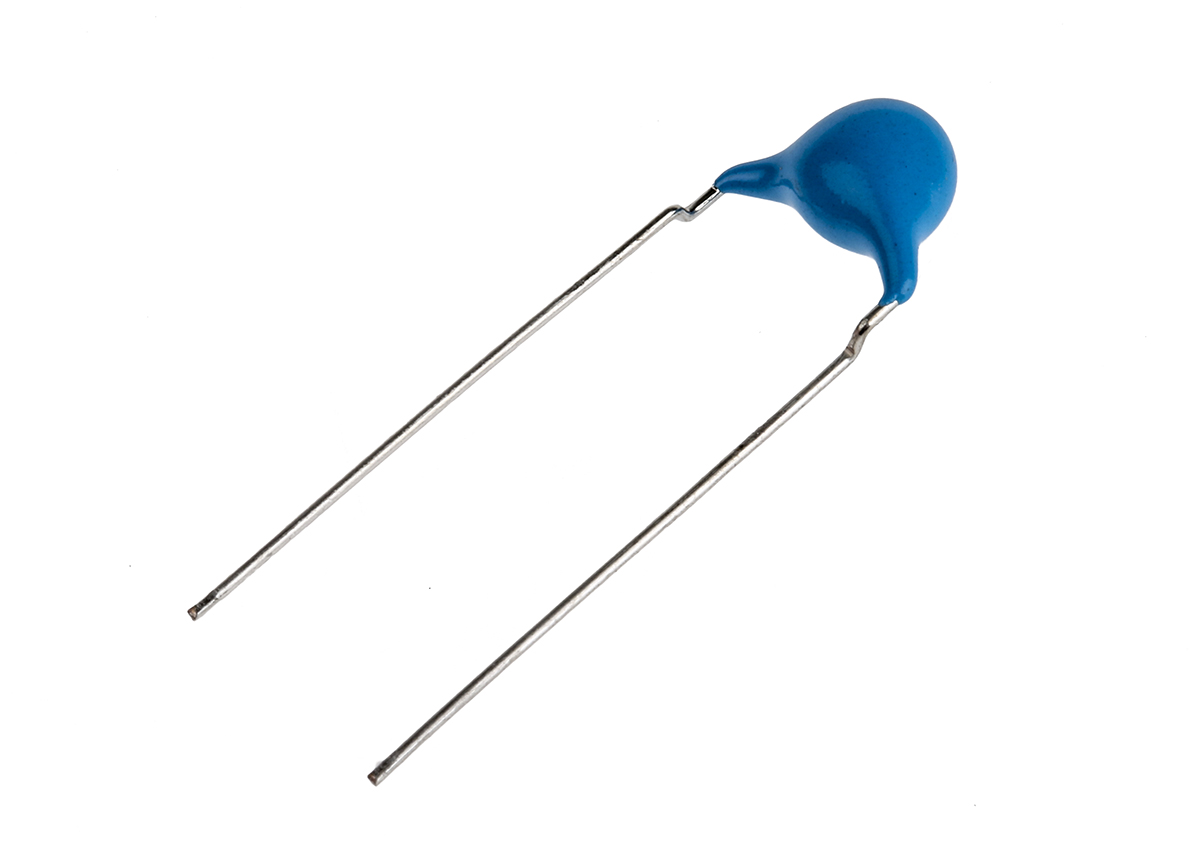

Single Layer Ceramic Capacitor (SLCC) 1.5nF 1.5 kV dc, 500 Vrms ac ±20% E(JIS) Dielectric, DE1, Through Hole

Capacitance:

1.5nF

Voltage:

1.5 kV dc, 500 Vrms ac

Mounting Type:

Through Hole

Series:

DE1

Tolerance:

±20%

Dielectric:

E(JIS)

Diameter:

9mm

Depth:

6mm

Dimensions:

9 (Dia.) x 37mm

Temperature Coefficient:

-55% → +20%

Suppression Class:

X1, Y1

Maximum Operating Temperature:

+125°C

Dielectric Material Family:

Ceramic

Minimum Operating Temperature:

-40°C

Dissipation Factor:

2.5%

Terminal Type:

Axial
