OPB625 Photologic Series Slotted Optical Switches
This series of Photologic® slotted optical switches, from Optek Technology, consist of an IR LED and a monolithic integrated circuit. This includes a photodiode, a linear amplifier and a Schmitt trigger on a single silicon chip.
These slotted optical switches feature a TTL/LSTTL compatible logic level output. They offer four output options.
Features of the slotted optical switches:
PCB mounted
Lead centers: 8.13 mm
Gap size: 4.83 mm
Enhanced signal to noise ratio
These slotted optical switches feature a TTL/LSTTL compatible logic level output. They offer four output options.
Features of the slotted optical switches:
PCB mounted
Lead centers: 8.13 mm
Gap size: 4.83 mm
Enhanced signal to noise ratio

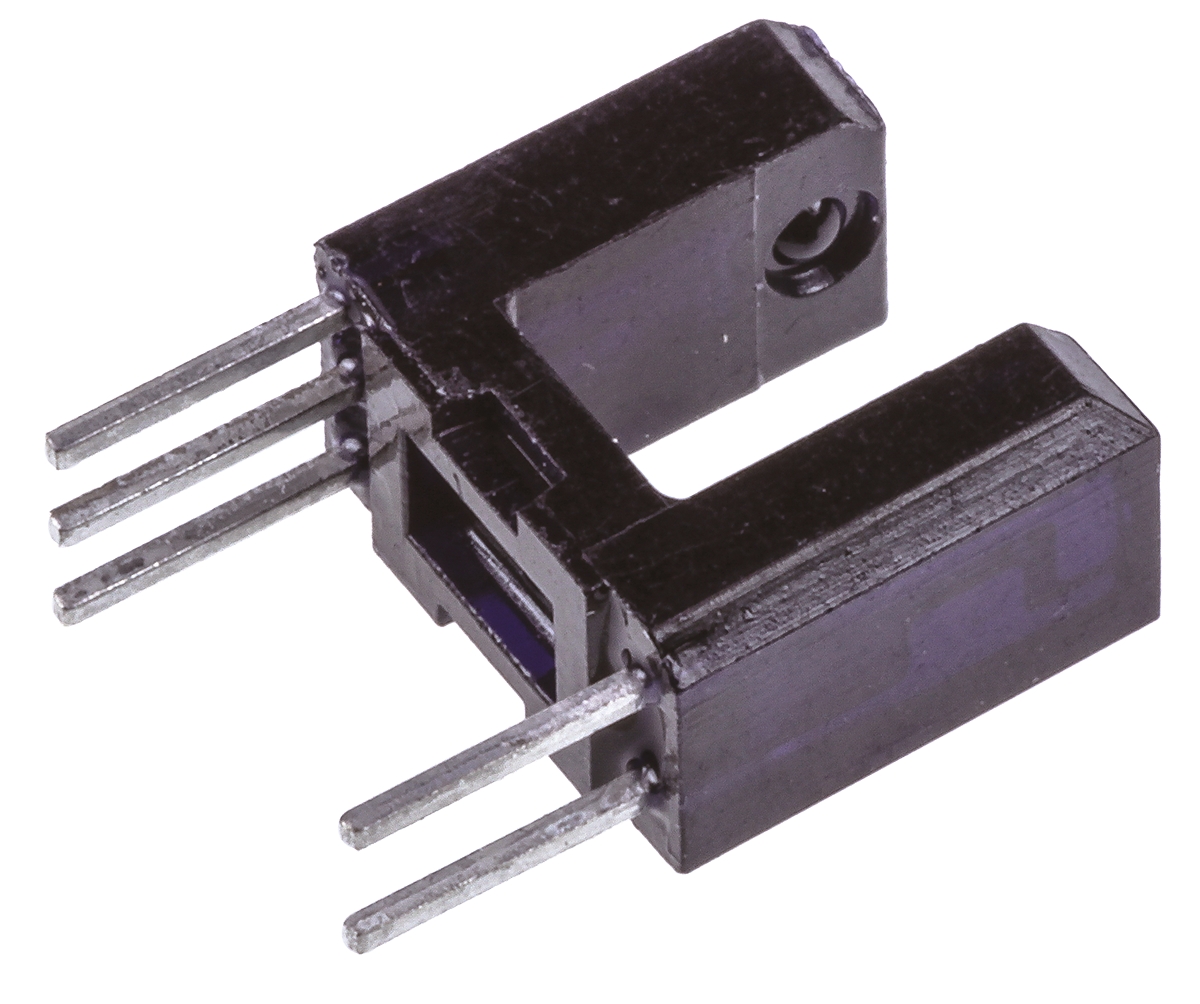

OPB625 , Through Hole Slotted Optical Switch, Buffer, Open-Collector with 10K Pull-Up Resistor Output
Manufacturer:
Optek
Manufacturer Part No:
OPB625
Enrgtech Part No:
ET13895583
Warranty:
Manufacturer
£ 1.91
Checking for live stock
Output Device:
Buffer, Open-Collector with 10K Pull-Up Resistor
Number of Channels:
1
Typical Rise Time:
30ns
Typical Fall Time:
30ns
Mounting Type:
Through Hole
Number of Pins:
5
Dimensions:
5.58 x 10.16 x 9.52mm
Height:
9.52mm
Length:
5.58mm
Maximum Operating Temperature:
+100°C
Minimum Operating Temperature:
-40°C
Slot Width:
4.83mm
