The TE Connectivity LTE global world band combination antenna is a 5G FR1 which provides omnidirectional coverage. It has high efficiency, low profile on board SMD PCB antenna. It covers wideband range for 3G, 4G and 5G FR1. Its bandwidth and performance is based on ground plane size or design.
Suggested minimum ground plane length from antenna feed is 150mm
Available in tape and reel packaging for automatic mounting
RoHS compliant
Road vehicle compliant and REACH compliant
Available in tape and reel packaging for automatic mounting
RoHS compliant
Road vehicle compliant and REACH compliant

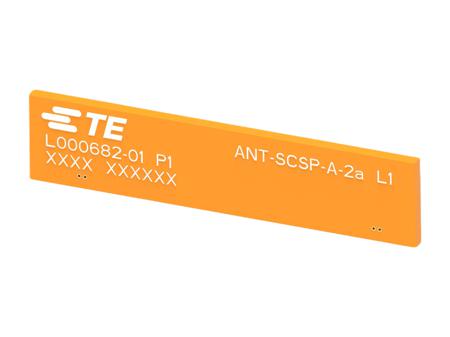

L000682-01 Internal Chip SMT Antenna, 5G (LTE)
Manufacturer:
TE ConnectivityManufacturer Part No:
L000682-01
Enrgtech Part No:
ET28371892
Warranty:
Manufacturer
£ 1.80
Checking for live stock
Internal/External:
Internal
RF Protocols:
5G (LTE)
Frequency Range:
617-5000 MHz
Maximum Operating Temperature:
+85°C
Physical Form:
Chip
Gain:
6.5dB
Minimum Operating Temperature:
-40°C
Antenna Internal Construction:
Low Profile
Series:
L000682
Dimensions:
45 x 1.61 x 10mm
Height:
1.61mm
Length:
45mm
